Electric Elevators
Winding-Drum Machines
Page 1
Return to elevatorbob's Electric Elevators
Return to elevatorbob's Elevator Pictures
Image 1 (1 of 2)

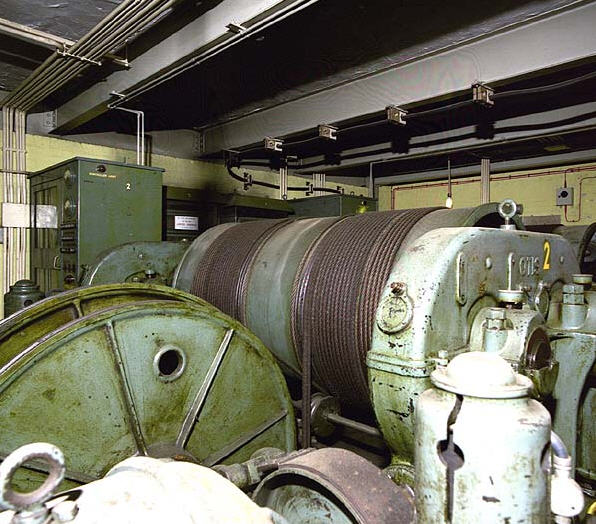

Two overhead drum machines serving the London Tube system in the United Kingdom
Image provided by: Herbie T. Mann
I know more!
Image 2 (2 of 2)
A different angle...
Image provided by: John Kerr
I know more!

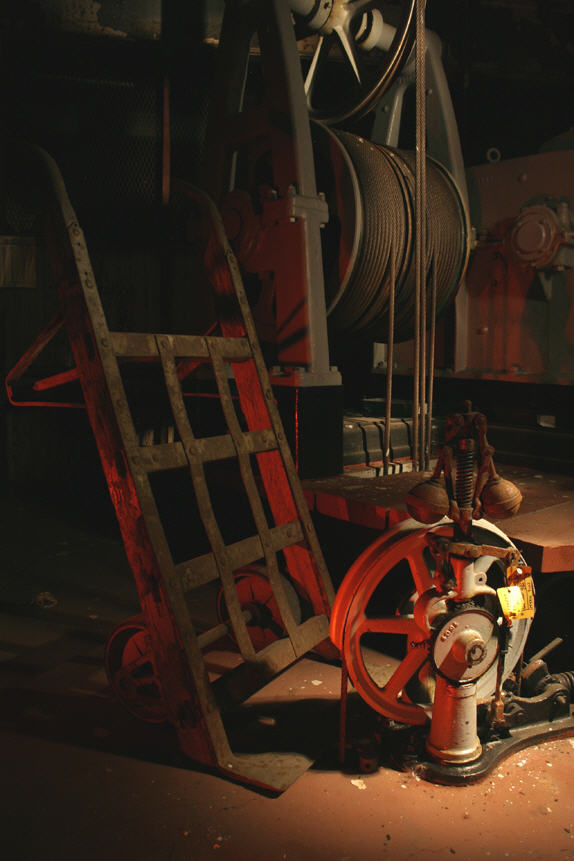

Image 3
An Otis 1913 basement drum machine...
Image provided by: Herbie T. Mann
I know more!

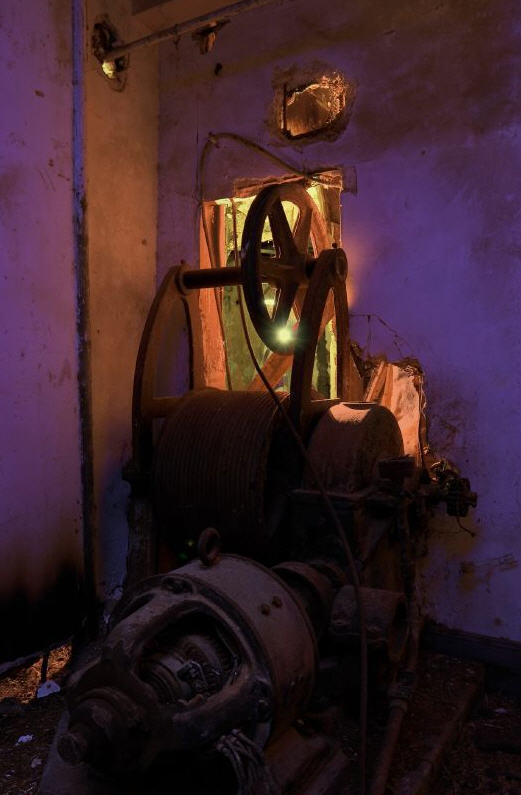

Image 4 (1 of 2)
A totally trashed basement drum machine in the derelict Byron Hot Springs Hotel in Byron, California, U.S.A.
Image provided by: Herbie T. Mann
I know more!

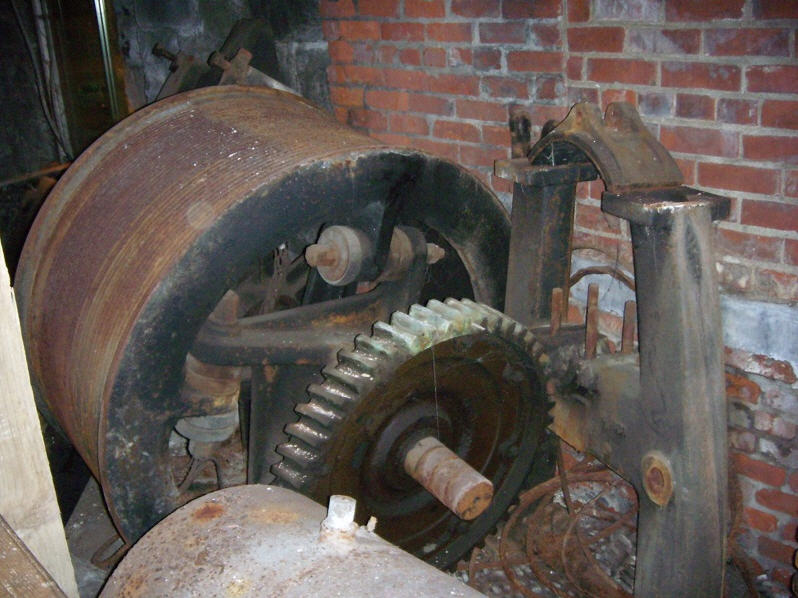

Image 5 (2 of 2)
The same drum machine from a different angle in the Byron Hot Springs Hotel in Byron, California, U.S.A.
Image provided by: Tom Tuttle
I know more!
Image 6

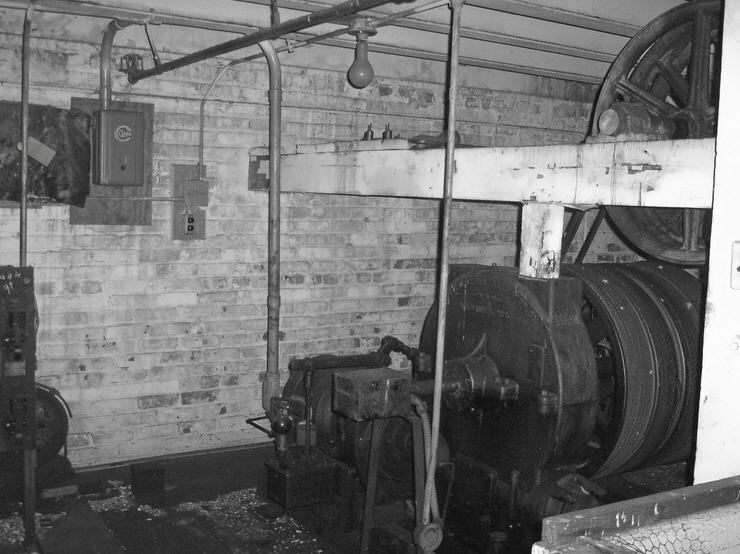

A basement drum machine installed in 1905 by the Thomas W. Power Engineering Co.
The Ontario in Washington, D.C., U.S.A.
Image provided by: Herbie T. Mann
I know more!

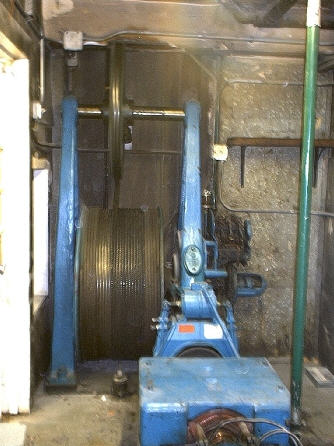

Image 7
An Otis basement drum machine in Hot Springs, Arkansas, U.S.A.
The car-switch operated car can be found here...
Image provided by: Herbie T. Mann
I know more!

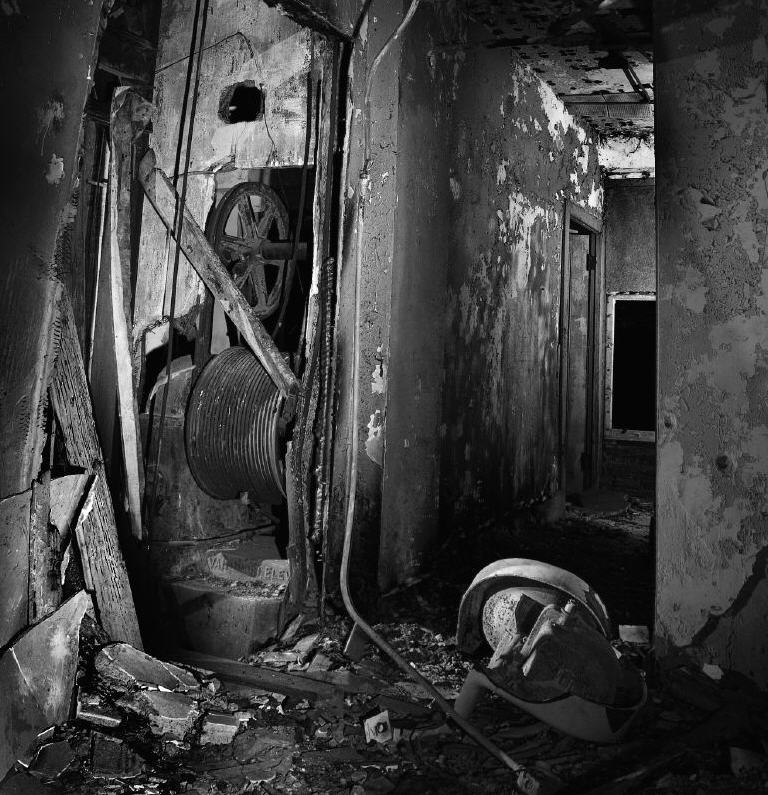

Image 8

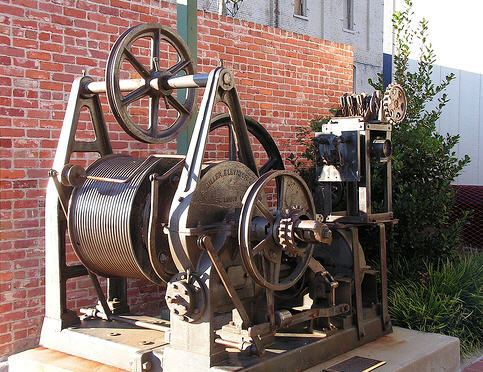

I don't think this is an elevator but it looks cool...doesn't it?!
Image provided by: Herbie T. Mann
I know more!

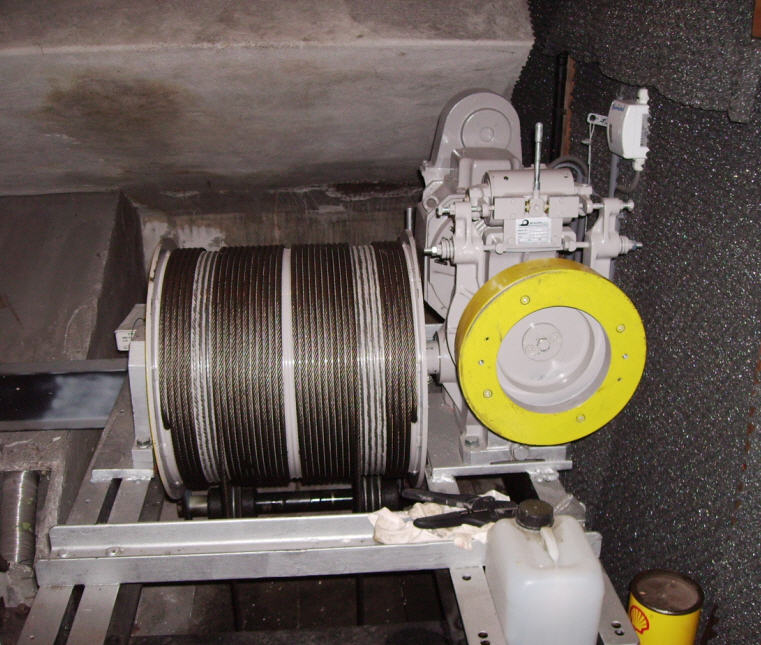

Image 9

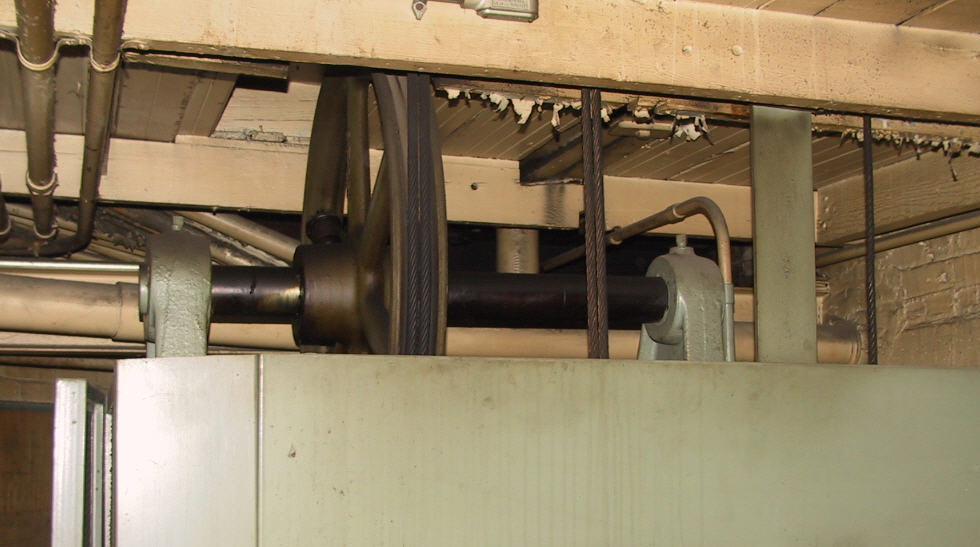

A newly installed overhead drum machine...
Please note the disconnect at the top right of the machine which is probably the "machine final limit."
There is a connection between the machine and the handle...if the car overtravels the disconnect is opened.

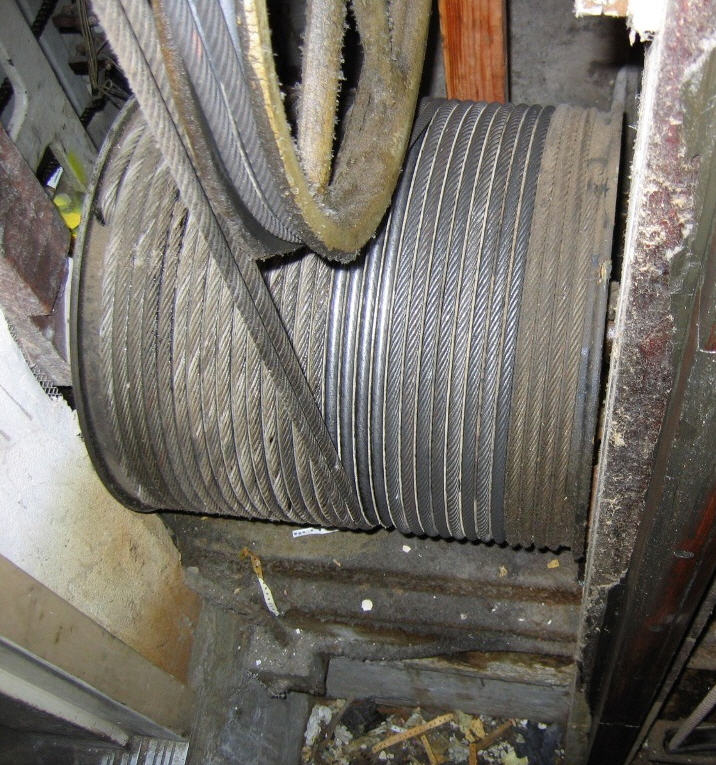

Most authorities require a "machine final limit." (See A17.1S-2005 - 2.25.3.3.2 in the U.S.A.)
Please note the manner in which the ropes wind on and off the face of the drum.
Image provided by: Hans van Lunsen - Holland
I know more!
Image 10

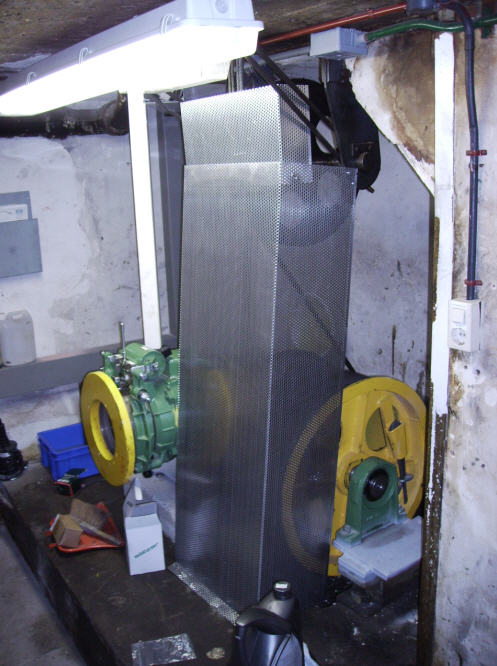

A new drum machine placed beneath the hoistway by Hans - our buddy in Holland...
Image provided by: Hans van Lunsen - Holland
I know more!

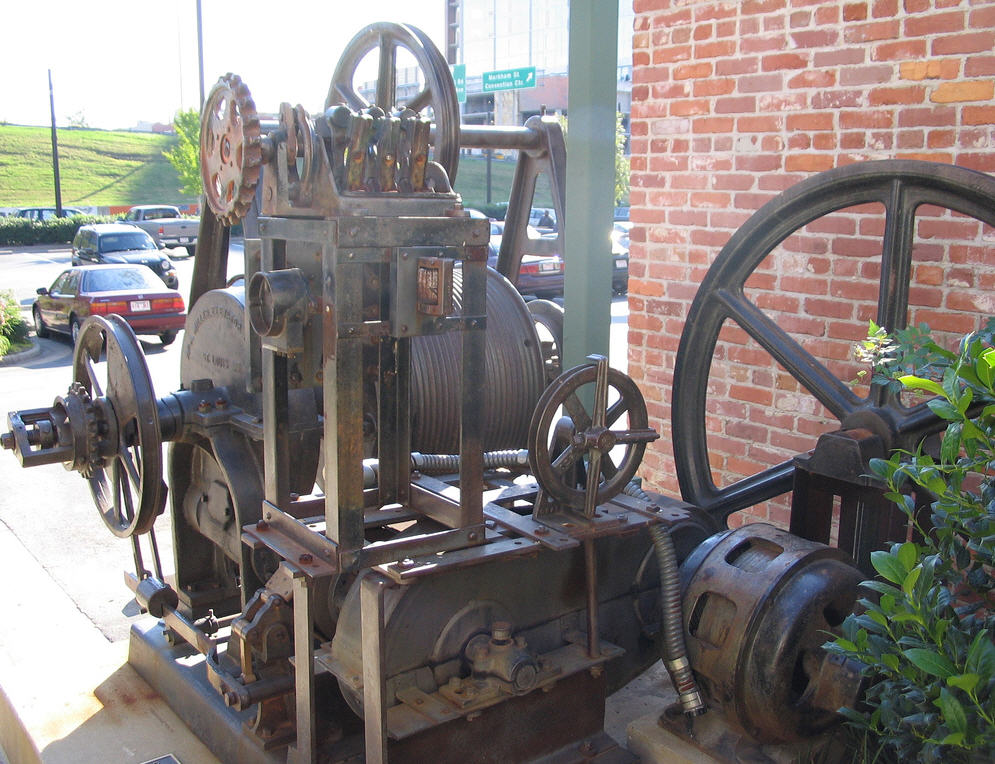

Image 11

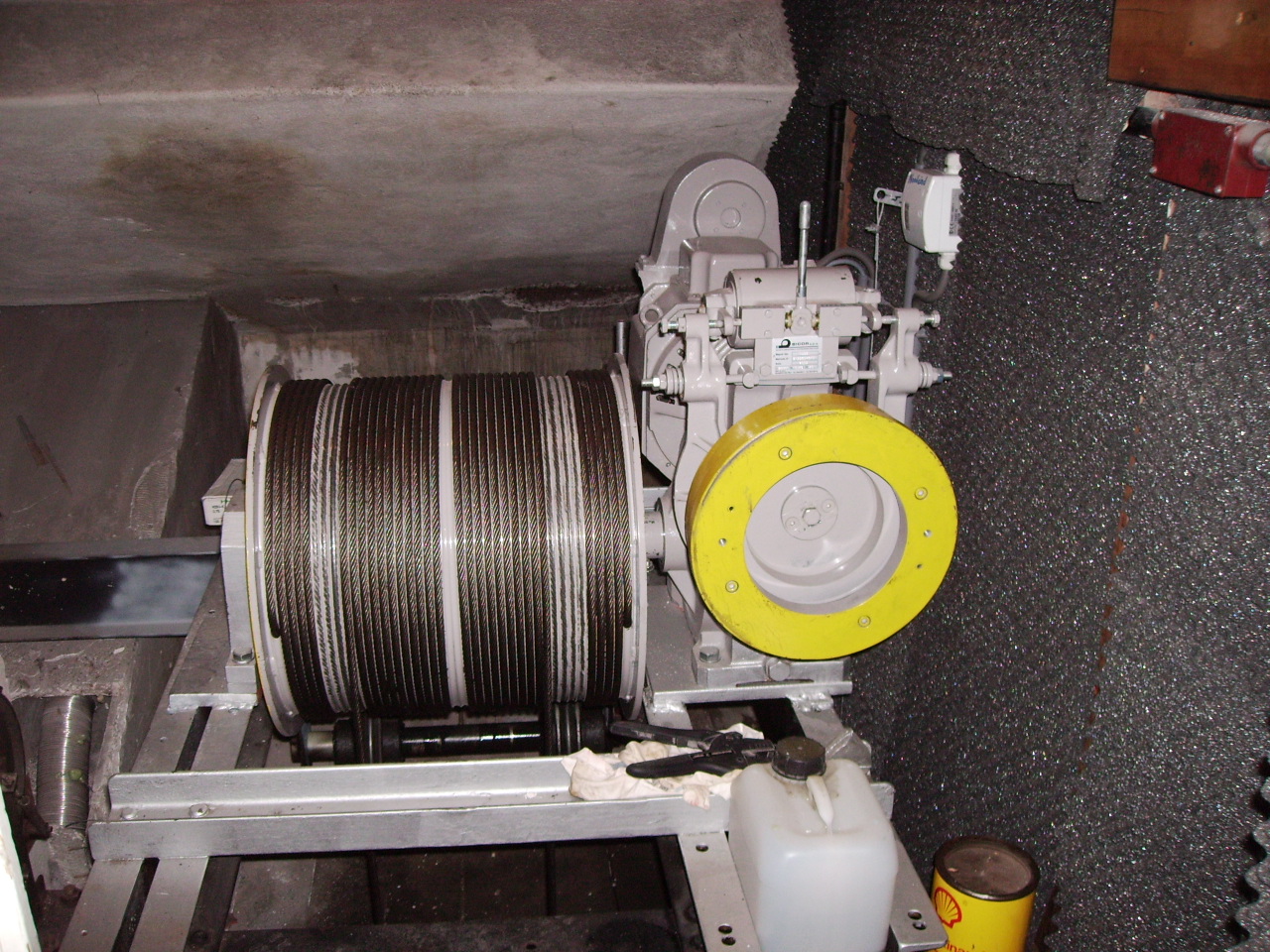

The same drum machine as above but from a different angle...

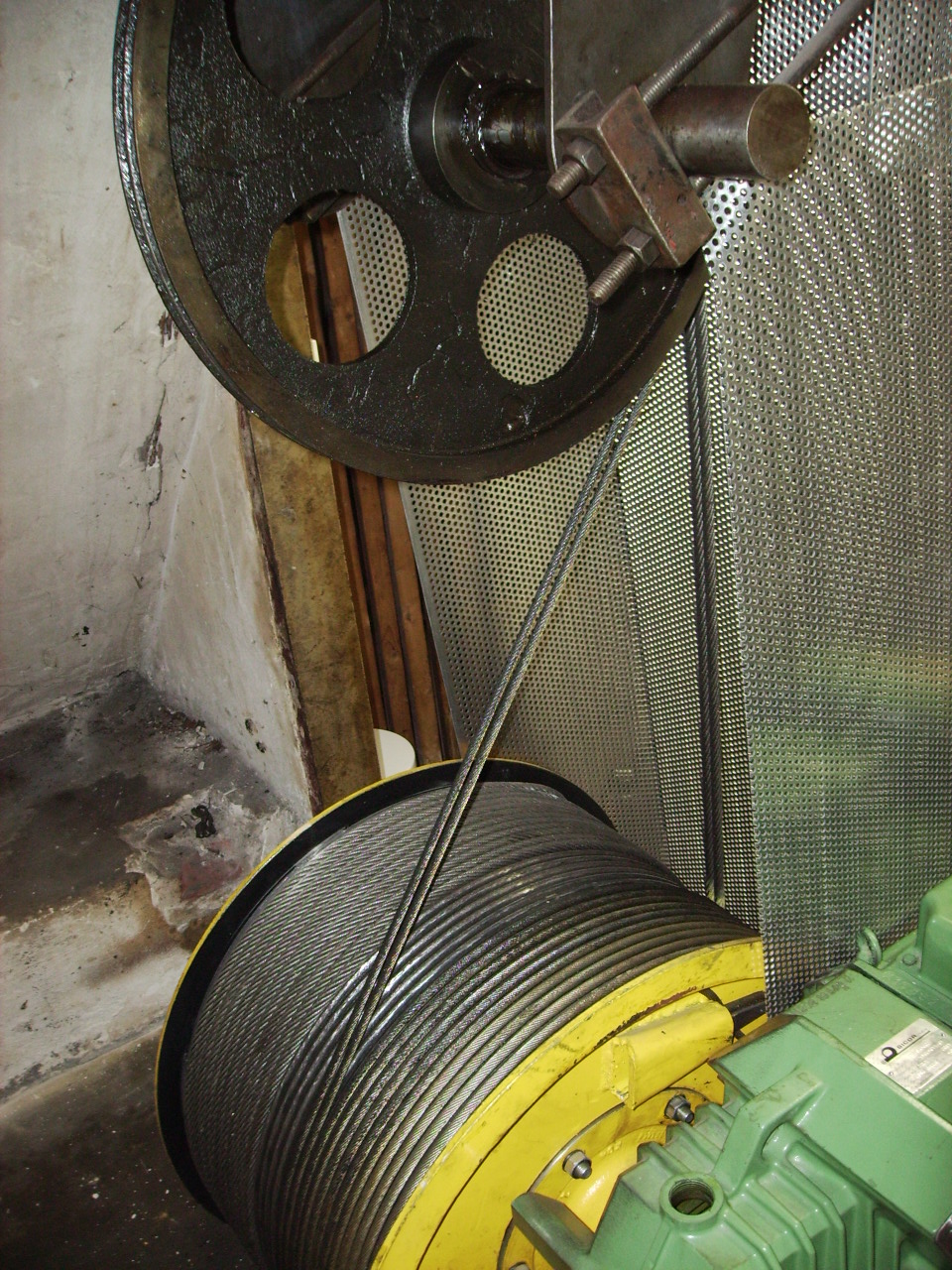

Please note the built-in wedge type rope socket on the side of the drum
Image provided by: Hans van Lunsen - Holland
I know more!
Image 12
An overhead drum machine...
Image provided by: Herbie T. Mann
I know more!
Image 13

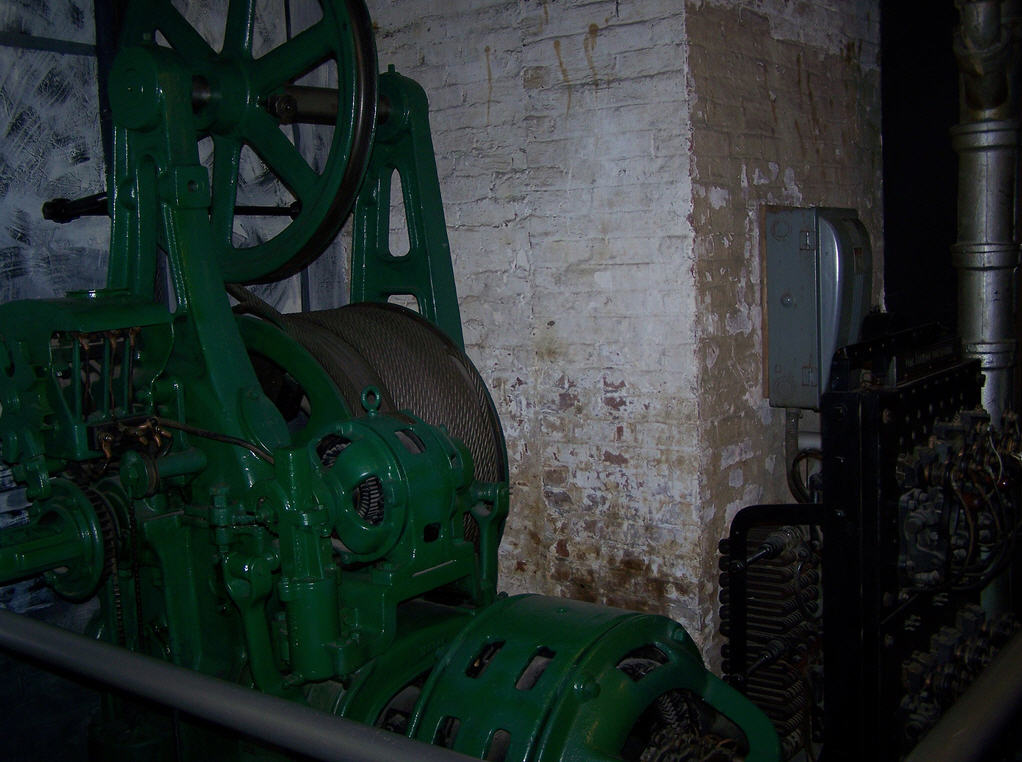

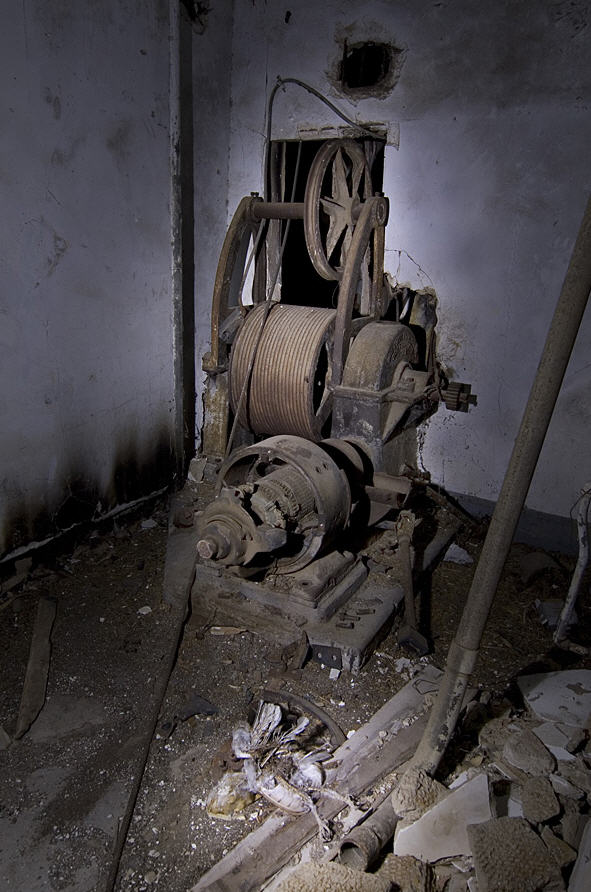

Another derelict machine at the Byron Hot Springs Hotel in Byron, California, U.S.A.
Image provided by: Sam Wilson
I know more!
Image 14

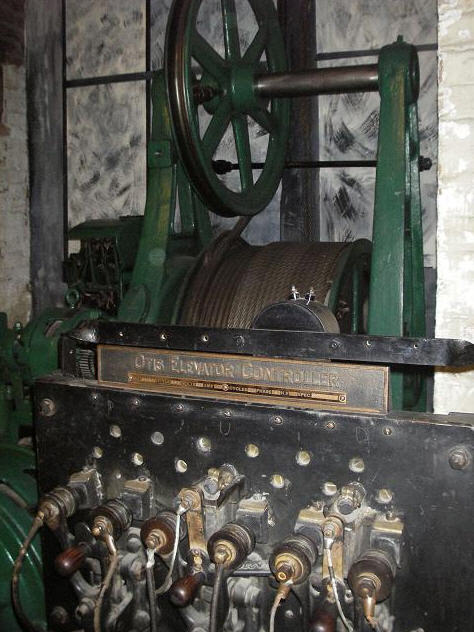

Please note the Otis flat head motor and the machine final to the right of the drum...
Image provided by: Sam Wilson
I know more!
Image 15
Please note the flat head motor and the limit switches driven by the drum - machine final perhaps?
Image provided by: Neal Stubbs
I know more!
Image 16
Close-up of a drum...
Image provided by: Roland Low
I know more!
Image 17
A derelict drum machine...done up nice!
Image provided by: Roland Low
I know more!
Image 18
Various parts of an old drum machine...
Image provided by: Rufus Kelley
I know more!
Image 19
(1 of 3)

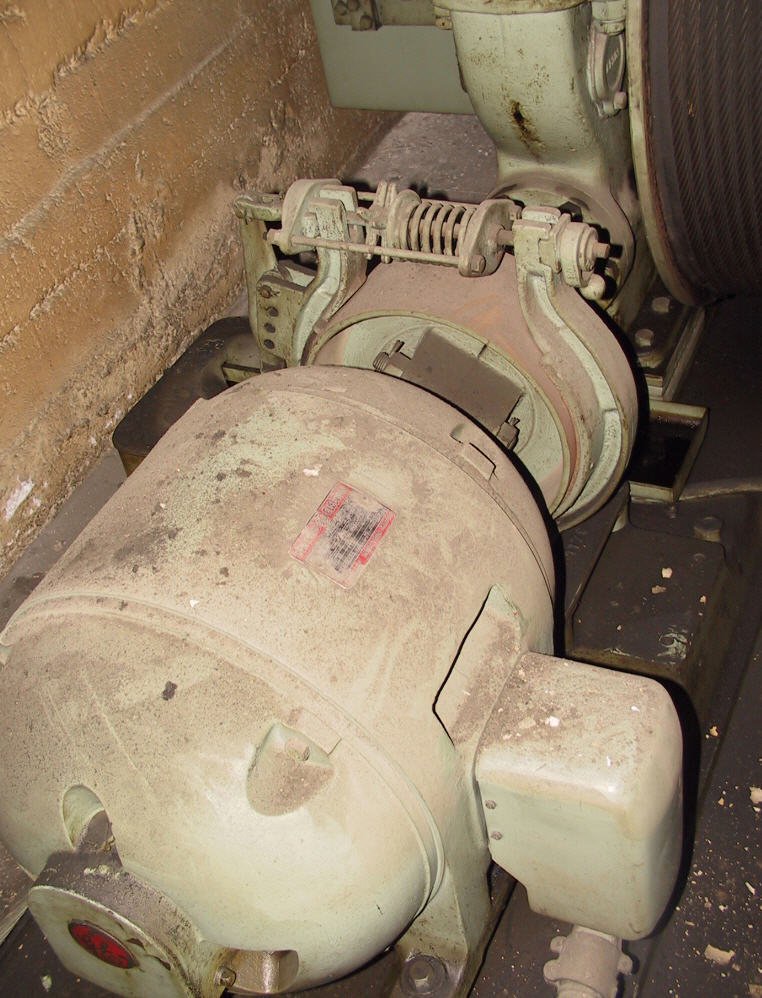

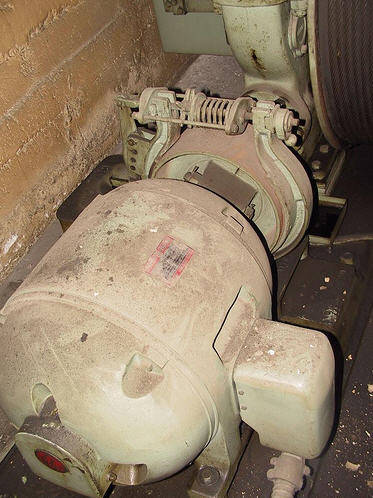

The motor, brake, and gearcase for a running unit...
Image provided by: Barton Willis
I know more!
Image 20 (2 of 3)
The winding-drum of the previous machine...
Image provided by: Rufus Kelley
I know more!
Image 21 (3 of 3)
The traveling or vibrating sheave of the previous machine
Image provided by: Rufus Kelley
I know more!

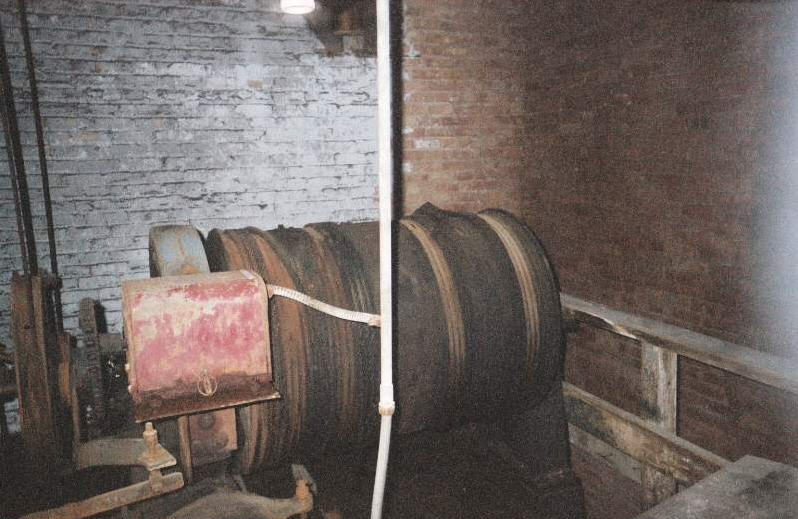

Image 22 (1 of 4)
Once used in the Cox Building, Central Arkansas Library System - Little Rock, Arkansas, U.S.A.
Image provided by: Roger Stahls
I know more!
Image 23 (2 of 4)
Once used in the Cox Building, Central Arkansas Library System - Little Rock, Arkansas, U.S.A.
Image provided by: Roger Stahls
I know more!
Image 24 (3 of 4)
Once used in the Cox Building, Central Arkansas Library System - Little Rock, Arkansas, U.S.A.
Image provided by: Roger Stahls
I know more!
Image 25
(4 of 4)
Once used in the Cox Building, Central Arkansas Library System - Little Rock, Arkansas, U.S.A.
Image provided by: Roger Stahls
I know more!
Image 26
Tennessee Coal & Iron's Ensley Works - Birmingham, Alabama, U.S.A.
I would guess that the chain running from the drum shaft to the controller is used to
operate the "machine final limits" as required by most codes. (See A17.1S-2005 - 2.25.3.3.2)
Most jurisdictions do not allow the use of "chains, ropes, or belts" as a driving means for these devices.
More of these microdrive machines are located here...
Image provided by: Herbie T. Mann
I know more!
Image 27

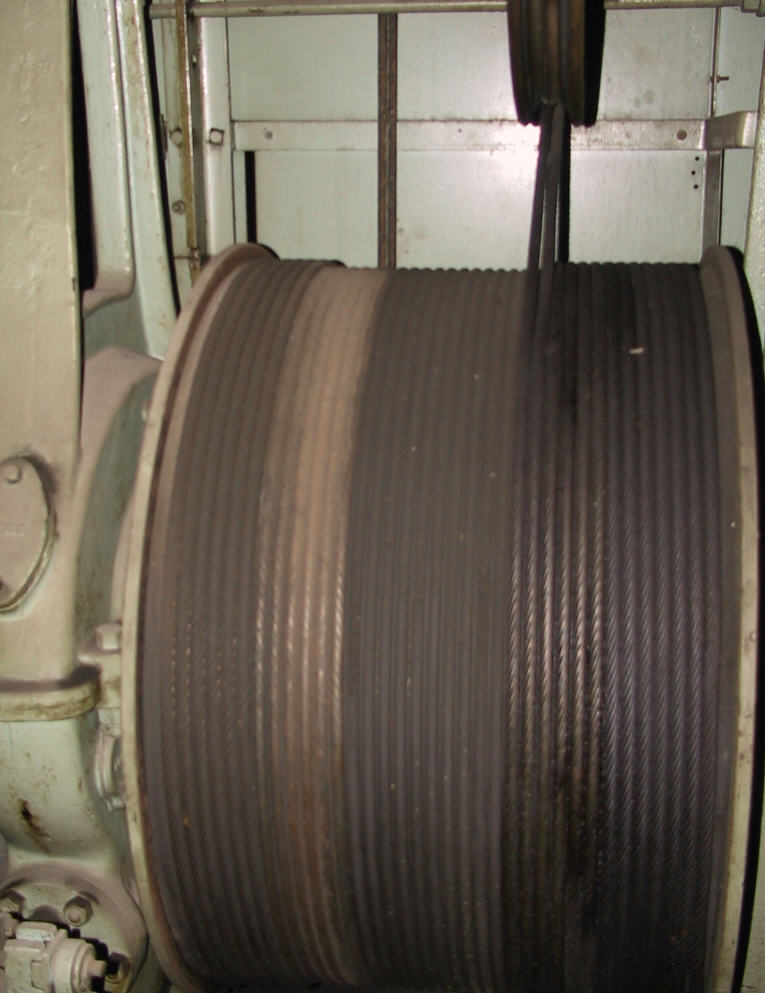

Please note how the ropes wind on and off the face of this drum...
Mare Island Naval Shipyard, California, U.S.A.
Image provided by: Herbie T. Mann
I know more!
Image 28

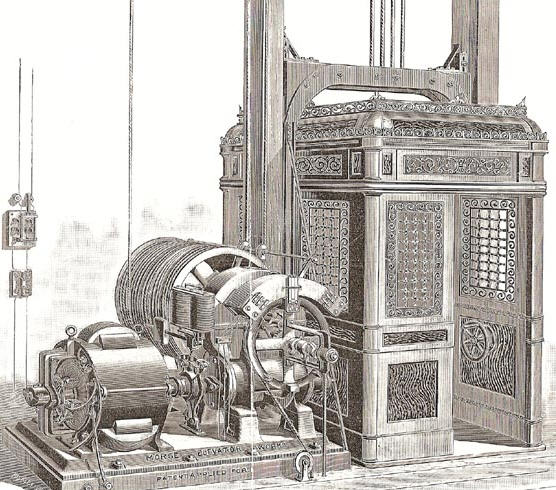

A line drawing of a Morse winding-drum machine...
Image provided by: Herbie T. Mann
I know more!

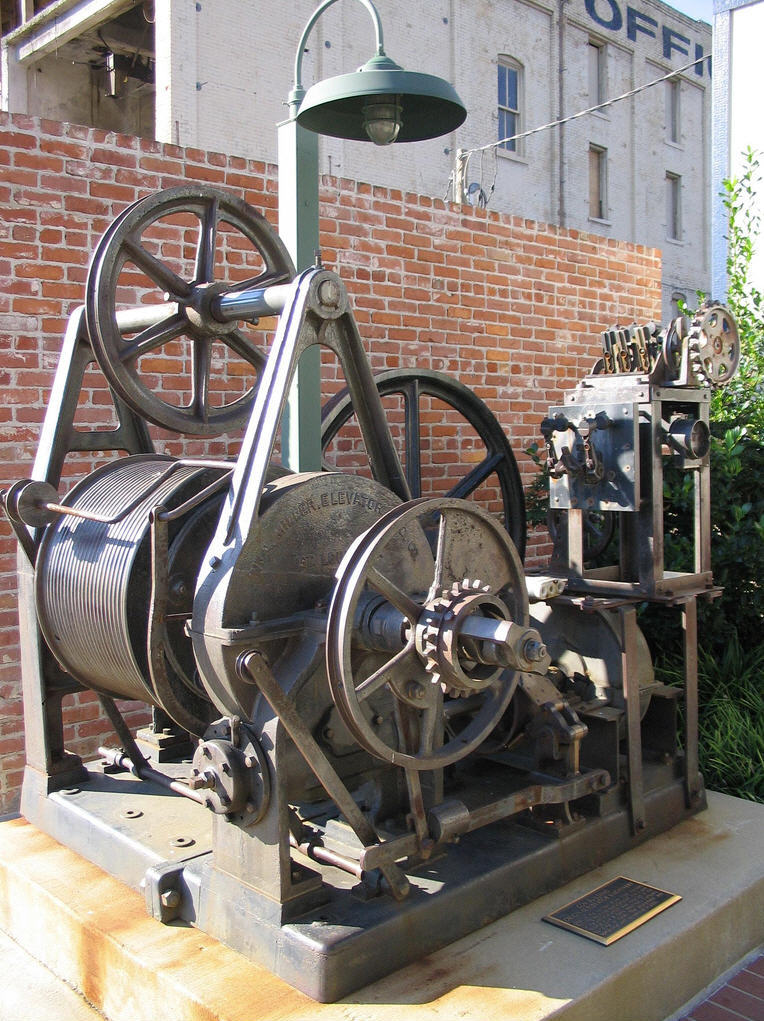

Image 29
Hot Springs National Park, Ouachita Mountains, Arkansas, U.S.A.
The larger image is easier to view and the Otis machine is beautiful!
Image provided by: Todd Ferris
I know more!
Image 30
A derelict overhead machine...
Sinclair-Wilson-Farmstead Meatpacking Plant - Cedar Rapids, Iowa, U.S.A.
Image provided by: Felix Katz
I know more!
