Antique Conveyances - Elevators
Old Elbe Tunnel
River Elbe, Germany
Return to elevatorbob's Antique Conveyances
Return to elevatorbob's Elevator Pictures
This introduction is from: Wikipedia - Old Elbe Tunnel
Image 1
Image provided by: Patrick MaGroen
Old Elbe Tunnel (Alter Elbtunnel) opened in 1911, the 426m (1,400 ft) long tunnel was a technical sensation. 24 m (80 ft) beneath the surface, two tubes with 6 m (20 ft) diameter connect central Hamburg with the docks and shipyards on the south side of the river Elbe. This meant a big improvement for tens of thousands of workers in one of the busiest harbours in the world.
Four huge lifts on either side of the tunnel carried pedestrians, carriages and motor vehicles to the bottom. They are still in operation, though due to the limited capacity by today's standards, other bridges and tunnels have been built and taken over most of the traffic. The old tunnel has turned into an impressive attraction for tourists and was featured in the film The Odessa File.
Construction was done under pressure and, like during the construction of the Brooklyn Bridge towers, diver's disease was a big problem, killing three and causing 74 severe and more than 600 light cases among the 4,400 workers, two casualties were caused by accidents.
Image 2

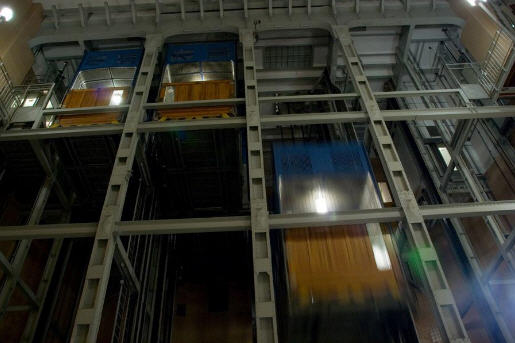

Four large vehicle elevators await travelers on each side of the river.
Image provided by: Patrick MaGroen
Image 3
Image provided by: Patrick MaGroen
Image 4
Image provided by: Patrick MaGroen
Image 5
Sign on hoistway door reads - "Stop if doors are in motion."
Image provided by: Patrick MaGroen
Image 6
Image provided by: Patrick MaGroen
Image 7
Image provided by: Patrick MaGroen
Image 8
Image provided by: Patrick MaGroen
Image 9
Image provided by: Patrick MaGroen
Image 10
Image provided by: Patrick MaGroen
Image 11
Image provided by: Patrick MaGroen
Image 12
Image provided by: Patrick MaGroen
Image 13
Image provided by: Patrick MaGroen
Image 14
Image provided by: Patrick MaGroen
Image 15
Car operating panel.
Image provided by: Patrick MaGroen
Image 16
Image provided by: Patrick MaGroen
Image 17
Image provided by: Patrick MaGroen
Image 18
Image provided by: Patrick MaGroen
Image 19
Image provided by: Patrick MaGroen
Image 20
There appears to be a passenger elevator on either side of the four main vehicle elevators.
Image provided by: Patrick MaGroen
Image 21
Image provided by: Patrick MaGroen
Image 22
Image provided by: Patrick MaGroen
Image 23
Image provided by: Patrick MaGroen
Image 24
The tunnels...
Image provided by: Patrick MaGroen
Image 25
...426m (1,400 ft) long!
Image provided by: Patrick MaGroen
Image 26
The New Elbe Tunnel...not much in the way of elevators here!
Image provided by: Patrick MaGroen
