Schindler
Winding-Drum Machine
Agen, France
Return to elevatorbob's Antique Conveyances
Return to elevatorbob's Elevator Pictures
Image 1
This Schindler elevator was installed in 1968 in a hotel in the South of France
The town is called Agen...it is Jonathan's hometown
The rated load is 180 Kg (397 pounds) - a relatively small cabin (car) with 5 stops
Image provided by: Jonathan Fitzpatrick
Ascenseurs et Automatismes de Gascognes
I know more!
Image 2

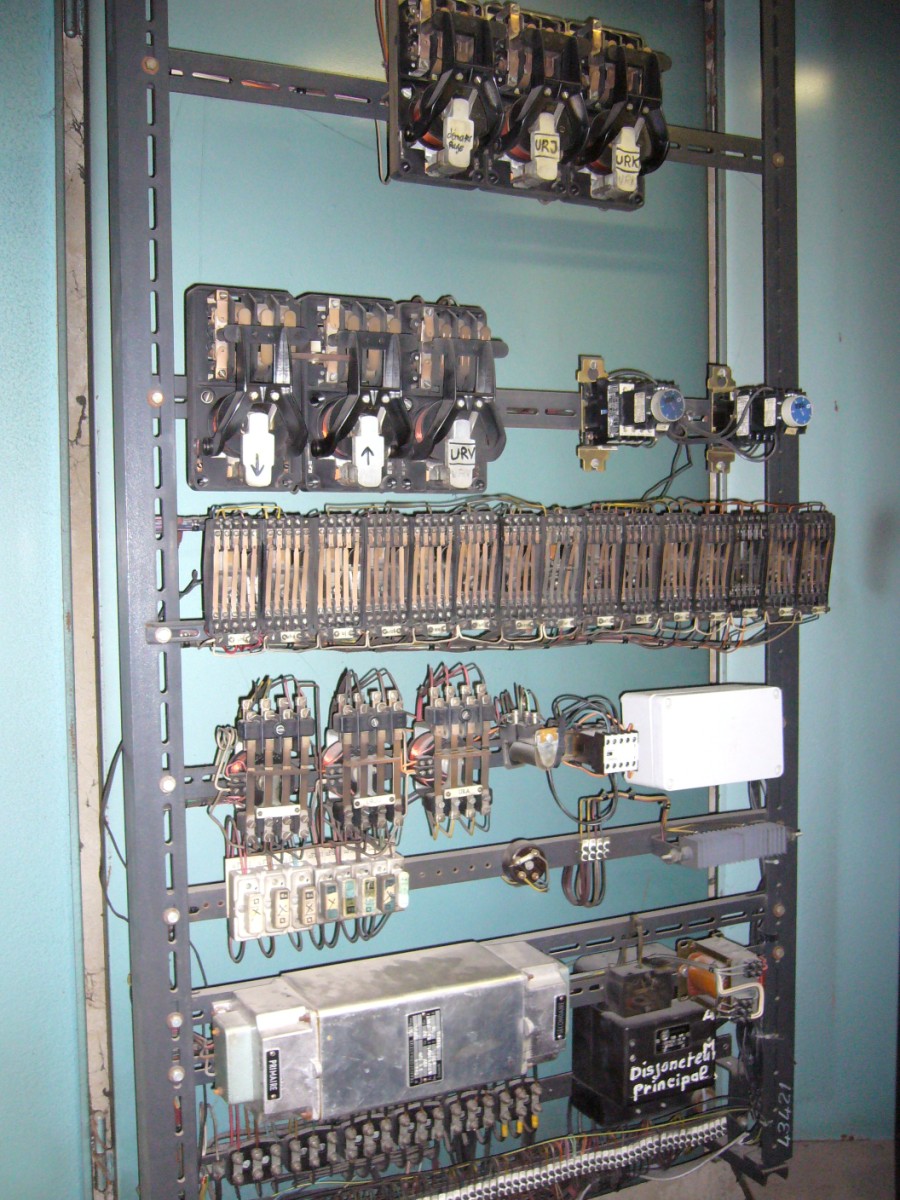

The controller...
Image provided by: Jonathan Fitzpatrick
Ascenseurs et Automatismes de Gascognes
I know more!
Image 3
The winding-drum machine...
Image provided by: Jonathan Fitzpatrick
Ascenseurs et Automatismes de Gascognes
I know more!
Image 4
The governor...looks like a friction type
Please note the contacts above the roller arm. The roller rides on the lobes of the
governor rope sheave and bounces higher as the car/governor speed increases.
Image provided by: Jonathan Fitzpatrick
Ascenseurs et Automatismes de Gascognes
I know more!
Image 5
Another view of the governor...
I believe that elbow is a lubrication point.
Image provided by: Jonathan Fitzpatrick
Ascenseurs et Automatismes de Gascognes
I know more!
Image 6
The main brake...looks a bit complicated!
The brake is shown in the released position...
Image provided by: Jonathan Fitzpatrick
Ascenseurs et Automatismes de Gascognes
I know more!
Image 7
A similar view - the brake is now in the set position...
Image provided by: Jonathan Fitzpatrick
Ascenseurs et Automatismes de Gascognes
I know more!
Image 8
The AC motors...
Adjacent to the red flywheel is the low (slow) speed motor
the smaller diameter motor is the fast (high) speed motor
Image provided by: Jonathan Fitzpatrick
Ascenseurs et Automatismes de Gascognes
I know more!
Image 9
The data plate for the high (fast) speed motor...
1500 U/min = 1500 RPM
Image provided by: Jonathan Fitzpatrick
Ascenseurs et Automatismes de Gascognes
I know more!
Image 10

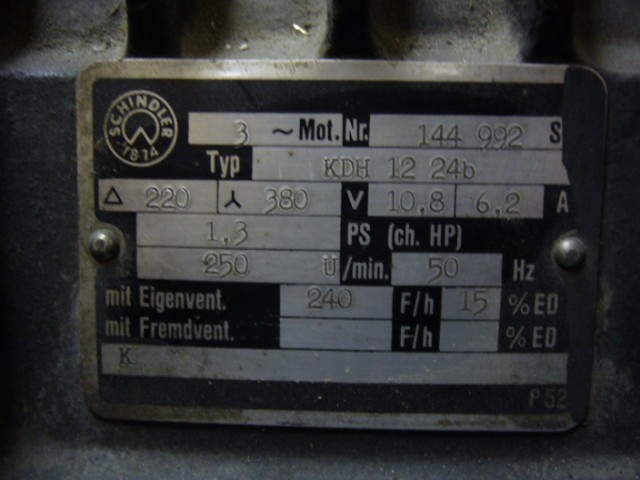

The data plate for the low (slow) speed motor...
250 U/min = 250/RPM
This elevator has a 6:1 speed reduction
The rated speed is 0.63 m/s (124 FPM) so the
leveling speed would be about 0.11 m/s (21 FPM).
Please note the frequency is listed as 50 hz.
At 60 hz we might see a rated speed of 0.76 m/s (150 FPM)
with a leveling speed of 0.13 m/s (25 FPM)
Image provided by: Jonathan Fitzpatrick
Ascenseurs et Automatismes de Gascognes
I know more!
Image 11
The selector...
Image provided by: Jonathan Fitzpatrick
Ascenseurs et Automatismes de Gascognes
I know more!
Image 12
Another view...
Image provided by: Jonathan Fitzpatrick
Ascenseurs et Automatismes de Gascognes
I know more!
Image 13
Another view still...
Image provided by: Jonathan Fitzpatrick
Ascenseurs et Automatismes de Gascognes
I know more!
Image 14
The selector is driven by the machine...not the car
Image provided by: Jonathan Fitzpatrick
Ascenseurs et Automatismes de Gascognes
I know more!
Image 15
The winding-drum and the machine final (fin de course)...
Image provided by: Jonathan Fitzpatrick
Ascenseurs et Automatismes de Gascognes
I know more!
Image 16
A close-up of the machine final (machine stop switch or machine stop final)
A17.1/CSA B44 - 2007 Safety Code for Elevators and Escalators
'2.25.3.3.2 - Winding drum machine elevators shall have two sets of final terminal
stopping switches, one located on and operated by the driving machine, and the
other located in the hoistway and operated by cams attached to the car.'
Image provided by: Jonathan Fitzpatrick
Ascenseurs et Automatismes de Gascognes
I know more!
Image 17

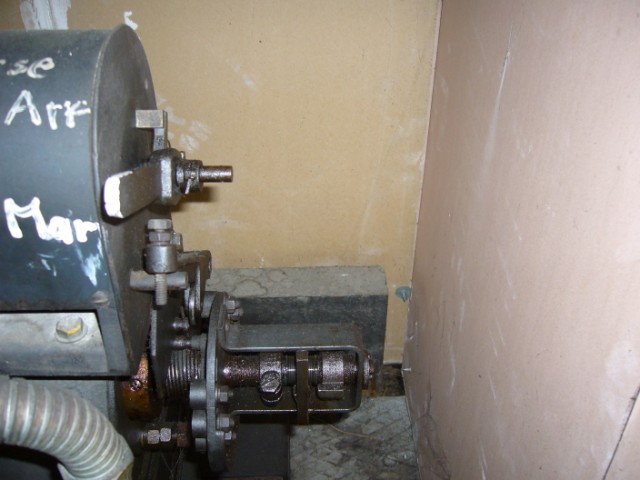

The machine final driving mechanism at the end of the winding-drum shaft...
Image provided by: Jonathan Fitzpatrick
Ascenseurs et Automatismes de Gascognes
I know more!
Image 18
The triggering mechanism...
Image provided by: Jonathan Fitzpatrick
Ascenseurs et Automatismes de Gascognes
I know more!
Image 19

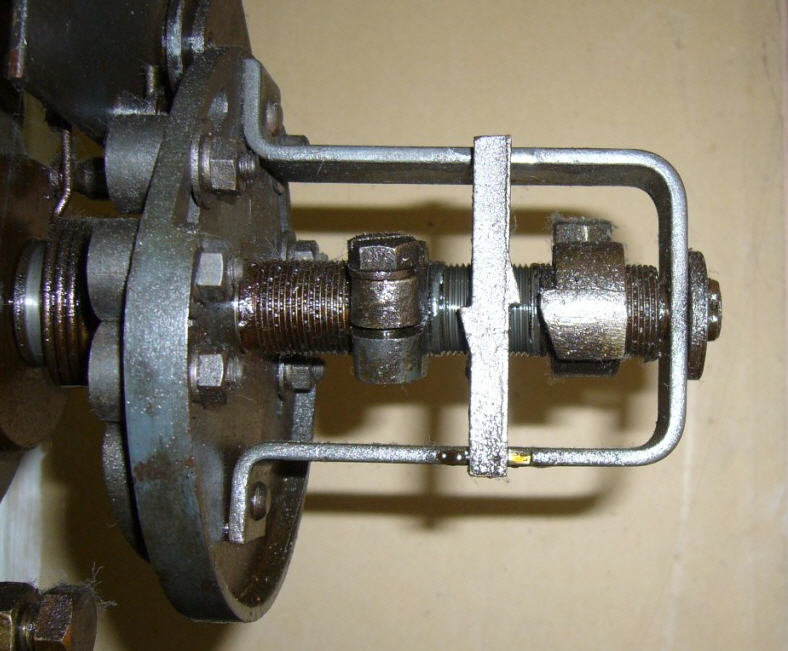

It appears that the vertical bar is treaded and travels horizontally between the cam stops.
If the car travels past either terminal landing the cam stop will engage the bar and
turn the mechanism which will open contacts in series with the 'mainline circuit.'
Image provided by: Jonathan Fitzpatrick
Ascenseurs et Automatismes de Gascognes
I know more!
Image 20
An interesting rope hitch...
Image provided by: Jonathan Fitzpatrick
Ascenseurs et Automatismes de Gascognes
I know more!
Image 21
A close-up view of the slack/broken rope switch...
Image provided by: Jonathan Fitzpatrick
Ascenseurs et Automatismes de Gascognes
I know more!
Image 22
The top of car operating device...
Image provided by: Jonathan Fitzpatrick
Ascenseurs et Automatismes de Gascognes
I know more!
Image 23
This elevator operated without car doors prior to 2003 (1968 - 2003...35 years!)
Image provided by: Jonathan Fitzpatrick
Ascenseurs et Automatismes de Gascognes
I know more!
