Platform Lift
Louvre Museum - Paris, France
Return to elevatorbob's Platform Lifts & Stairway Chairlifts
Return to elevatorbob's Elevator Pictures
Image 1

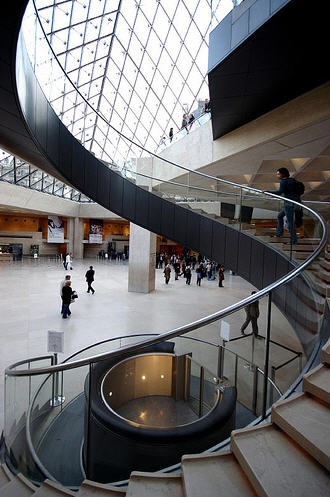

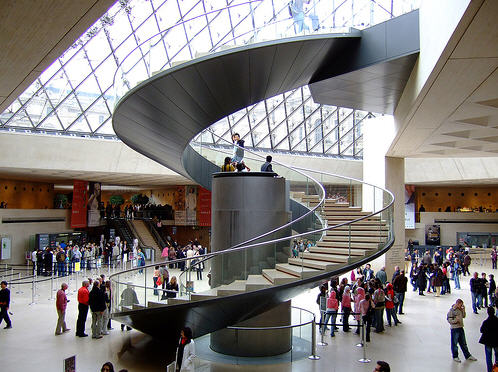

This is a "platform lift" (wheelchair lift) at the Louvre Museum in Paris, France
I say "platform lift" because most platform lifts have a maximum load rating of 750 pounds (340 kg).

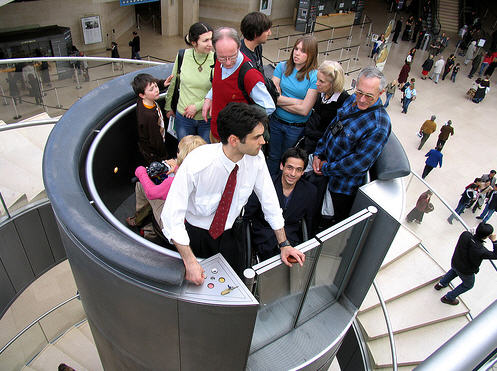

You can see that this device has a large platform and is carrying much more than 750 pounds.
Image provided by: Robbie Wilson
Image 2

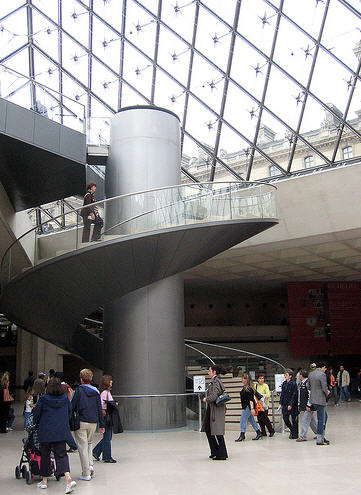

Please note that the bottom landing has only one set of landing doors...the top landing has two sets.
Image provided by: Robbie Wilson
Image 3
Image provided by: Robbie Wilson
Image 4
Image provided by: Robbie Wilson
Image 5
Image provided by: Robbie Wilson
Image 6

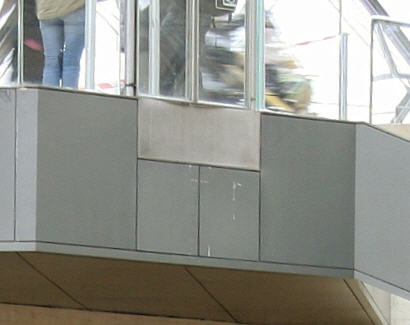

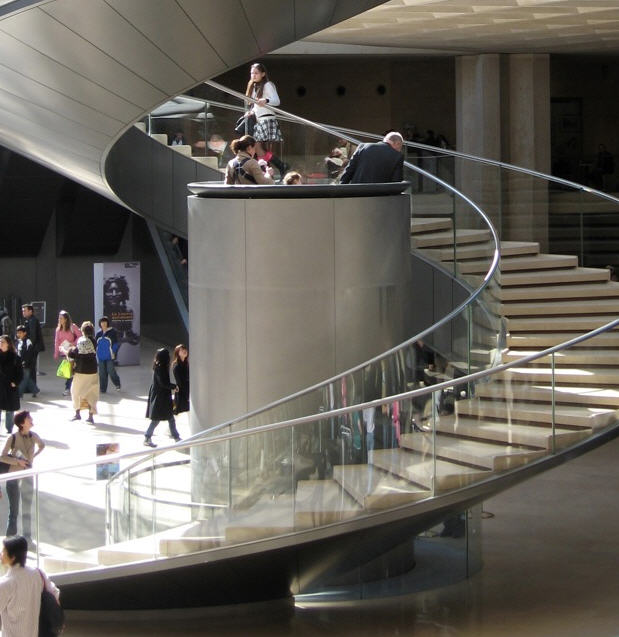

ASME A18.1 would consider this platform lift to be of the type with a "Partial Runway Enclosure Provided."
2.1.2.1 - "The area under the platform shall be fully enclosed by smooth guards, either telescoping
or stationary, on all accessible platform sides."
Image provided by: Robbie Wilson
Image 7
Image provided by: Robbie Wilson
Image 8

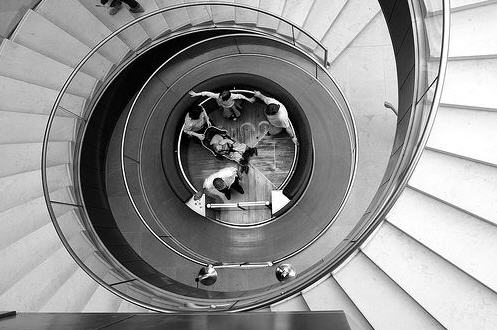

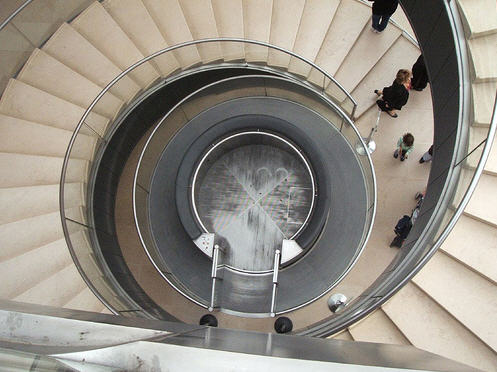

Looking down from the platform.
Image provided by: Robbie Wilson
Image 9
Image provided by: Robbie Wilson
Image provided by: Robbie Wilson
Image 11

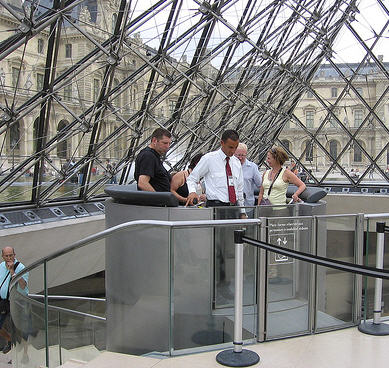

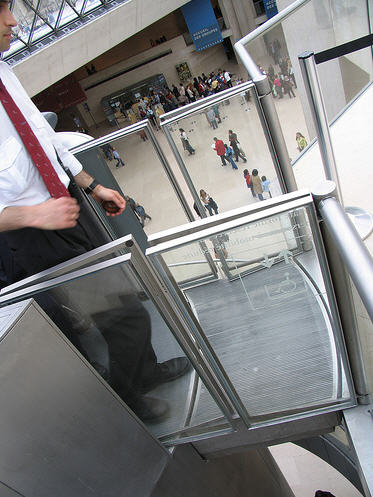

As you can see there are two sets of doors on both the platform and the landing.
I am guessing that once the walkway has been extended from the platform, both of the outer doors
are opened ensuring that the entire walkway is guarded before the inner doors are allowed to open.
Image provided by: Robbie Wilson
Image 12
Image provided by: Robbie Wilson
Image 13

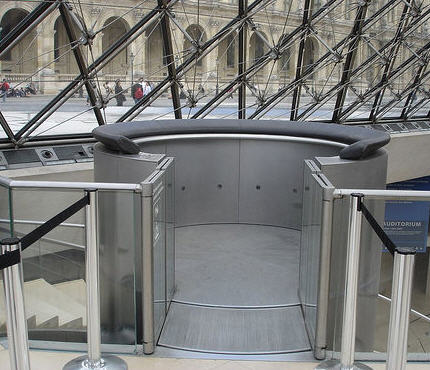

The top landing with a slightly rounded area prepared for the extendable walkway.
Image provided by: Robbie Wilson
Image 14

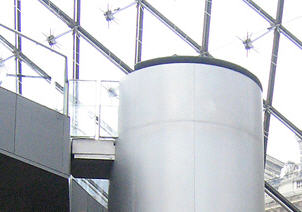

You can see that the walkway appears to extend from the platform tower.
Image provided by: Robbie Wilson
Image 15
Image provided by: Robbie Wilson
Image 16
Image provided by: Robbie Wilson
