Hoistway Landing Entrances

Freight Elevator Gates

Page 1

Return to elevatorbob's Hoistway Landing Entrances

Return to elevatorbob's Elevator Pictures

Freight Elevator Gates
Image 1
Someone likes blue...
Image provided by: Gean Walker
I know more!

Freight Elevator Gates
Image 2

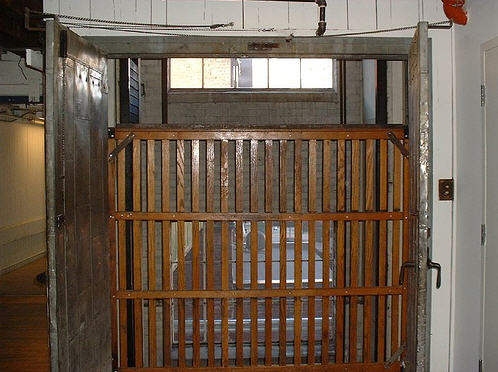

A wooden hoistway gate plus metal fire doors
Image provided by: Randy Neils
I know more!

Freight Elevator Gates
Image 3

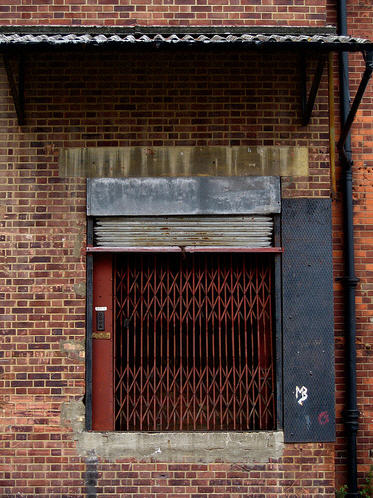

Somewhere in London, United Kingdom (1 of 2)
Image provided by: John Major
I know more!

Freight Elevator Gates

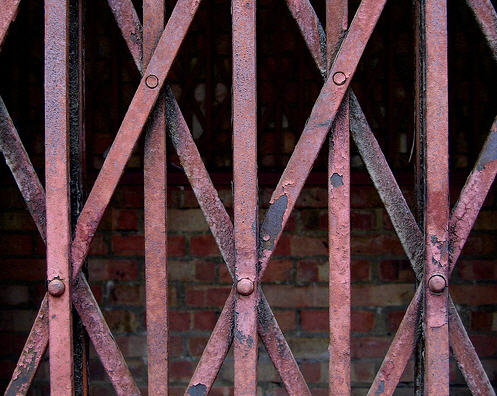

Image 4
A close-up of the gate in Image 3 (2 of 2)
Image provided by: John Major
I know more!

Freight Elevator Gates
Image 5
A derelict brewery in Grodzisk, Poland
I think that is the frame for the gate...but I am not sure
Image provided by: Stan Gold
I know more!

Freight Elevator Gates
Image 6
It appears that the handles are used to gain access to the landing
which appears to be designed for truck loading/unloading
Image provided by: Stan Gold
I know more!

Freight Elevator Gates
Image 7
Pfister and Vogel tannery - Milwaukee, Wisconsin, U.S.A.
I'm not sure what I am looking at here...the wooden gate looks awfully short and the
chains appear to be attached to the underside of the car - are they "warning chains?"
Image provided by: Rufus Kelley
I know more!

Freight Elevator Gates
Image 8
Northampton State Hospital in Northampton, Massachusetts, U.S.A.
Image provided by: Ted Cisneros
I know more!

Freight Elevator Gates
Image 9
See that rectangular hole in the left side of the gate...
I wonder if this elevator was/is controlled by a rope actuated operating device?
Image provided by: Máter Stahls
I know more!

Freight Elevator Gates
Image 10
Murray Mill - Atlanta, Georgia, U.S.A.
Please notice how the bottom of the gate is "notched" to allow
as clear an opening as possible when in the fully open postion
Image provided by: D.B. Selwick
I know more!

Freight Elevator Gates
Image 11
I'm not sure why this gate is hinged as it is. Perhaps once it rises as high as
it can the bottom part swings up and attaches to the ceiling of the landing?
I've seen a few old freight elevators that had a very short gate at the top landing because
of limited overhead space in the hoistway...maybe this was a way to provide a taller gate.
Image provided by: D.B. Selwick
I know more!

Hoistway Gates for Freight Elevators

Shorter hoistway landing gates were permitted, at one time, by California's Elevator Safety Orders as well as other local, state, and model codes.

******

California Elevator Safety Orders - Effective June 5, 1947

3020. Hoistway Gates.

(a) Freight elevator hoistway entrances may be equipped with gates instead of doors.

(b) If gates are used, they shall fill the entire opening or be at least sixty-six (66) inches high, except that the top landing gate may be not less than forty-one (41) nor more than forty-five (45) inches high, where structual conditions make sixty-six (66) inch gates impractical.

Where gates less than sixty-six (66) inches are used, the car top where provided, shall be hinged back at least eighteen (18) inches from the landing threshold, and no rigid horizontal or projecting member between the vertical sides of the car enclosure shall extend closer than twelve (12) inches from the landing threshold.

******

I believe the last part of this rule is designed to keep someone from being crushed if they are leaning over this short gate as the car leaves the floor.

Freight Elevator Gates
Image 12
I do not know where this is...
Image provided by: Roland Low
I know more!

Freight Elevator Gates

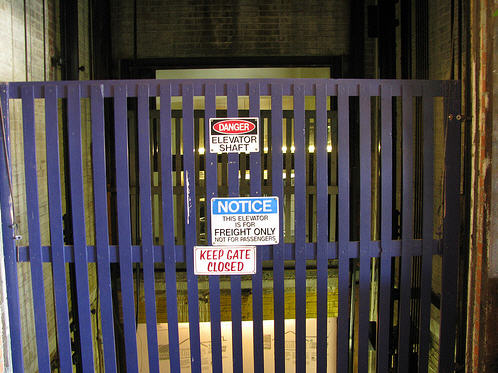

Image 13
That's quite a "hoistway enclosure" in Flowood, Mississippi, U.S.A.
Image provided by: "Skeeter"
I know more!

Freight Elevator Gates
Image 14 (1 of 2)
In an old factory now used for other functions...
Image provided by: Roger Taylor
I know more!

Freight Elevator Gates
Image 15 (2 of 2)
See...
Image provided by: Roger Taylor
I know more!

Freight Elevator Gates
Image 16
I do not know where this is...but the gate needs a little work!
Image provided by: Karl Stoy
I know more!

Freight Elevator Gates
Image 17
A salt mine in Krakow, Poland
Image provided by: Kay Zaychik
I know more!

Freight Elevator Gates
Image 18
More lady than gate but...
Image provided by: Everett Sawyer
I know more!

Freight Elevator Gates
Image 19
More gate...less lady!
Image provided by: Oscar Torres
I know more!

Freight Elevator Gates
Image 20
Two ladies one gate...
Image provided by: Susan Nelson
I know more!

Freight Elevator Gates
Image 21
One lady and one gate that's trying to get away...
Image provided by: Nita Grange
I know more!

Freight Elevator Gates

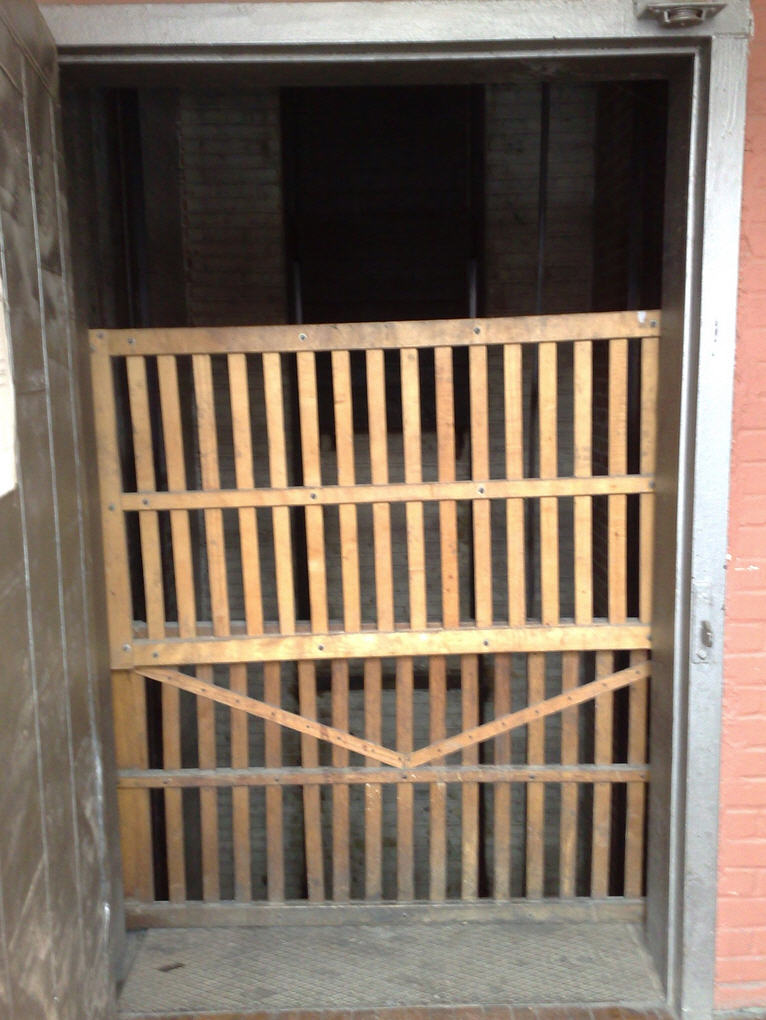

Image 22
I wonder if one of the relating cables is broken...
Montreal, Quebec, Canada
Image provided by: Sorie Brandon
I know more!

Freight Elevator Gates

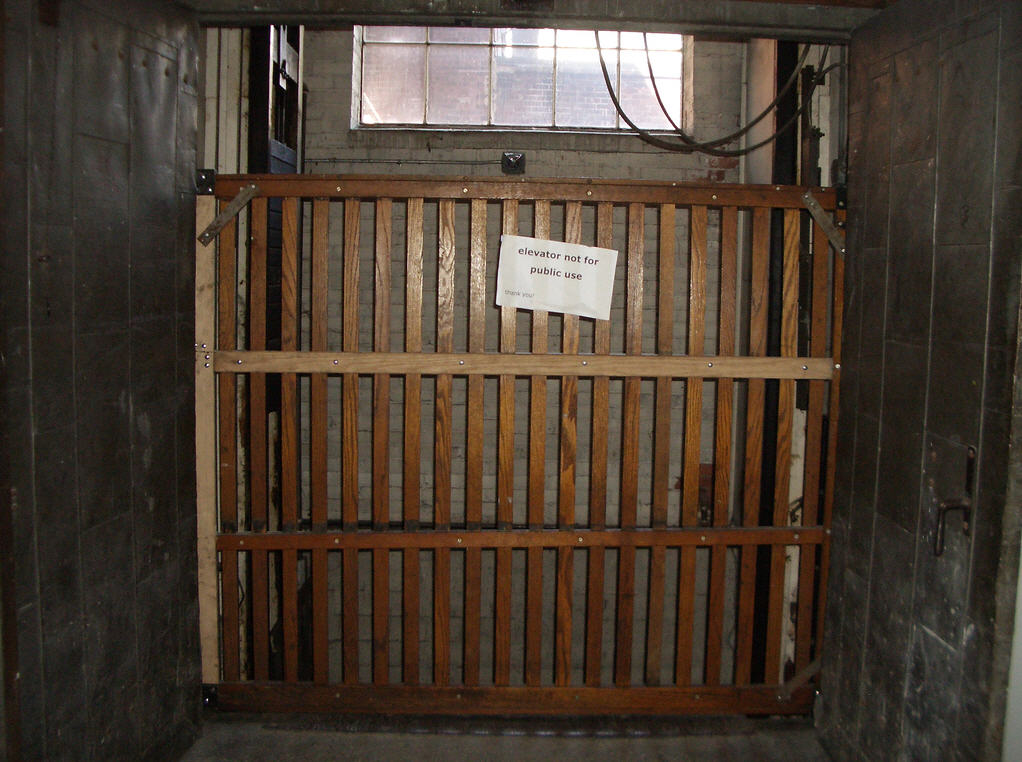

Image 23
Case Goods Warehouse in Toronto, Ontario, Canada
Image provided by: Paulie Relleri
I know more!

Freight Elevator Gates
Image 24
The car gate looks intact - New York, New York, U.S.A.
Image provided by: Vince Carter
I know more!

Freight Elevator Gates
Image 25
Bellingham, Washington, U.S.A.
Image provided by: Angol Magyar
I know more!

Freight Elevator Gates
Image 26
Nice colors...
Image provided by: Ralph Harvey
I know more!

Freight Elevator Gates

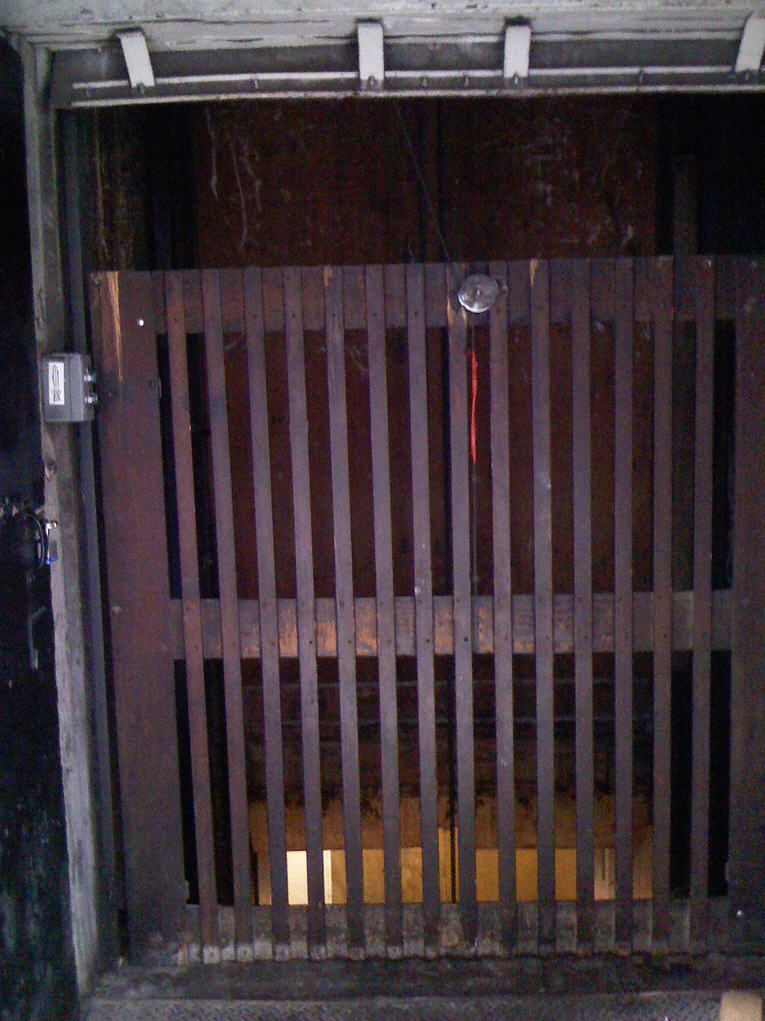

Image 27
I wonder if that round object on the gate is a balance weight?
San Francisco, California, U.S.A.
