 Elevators With Other Driving Machines

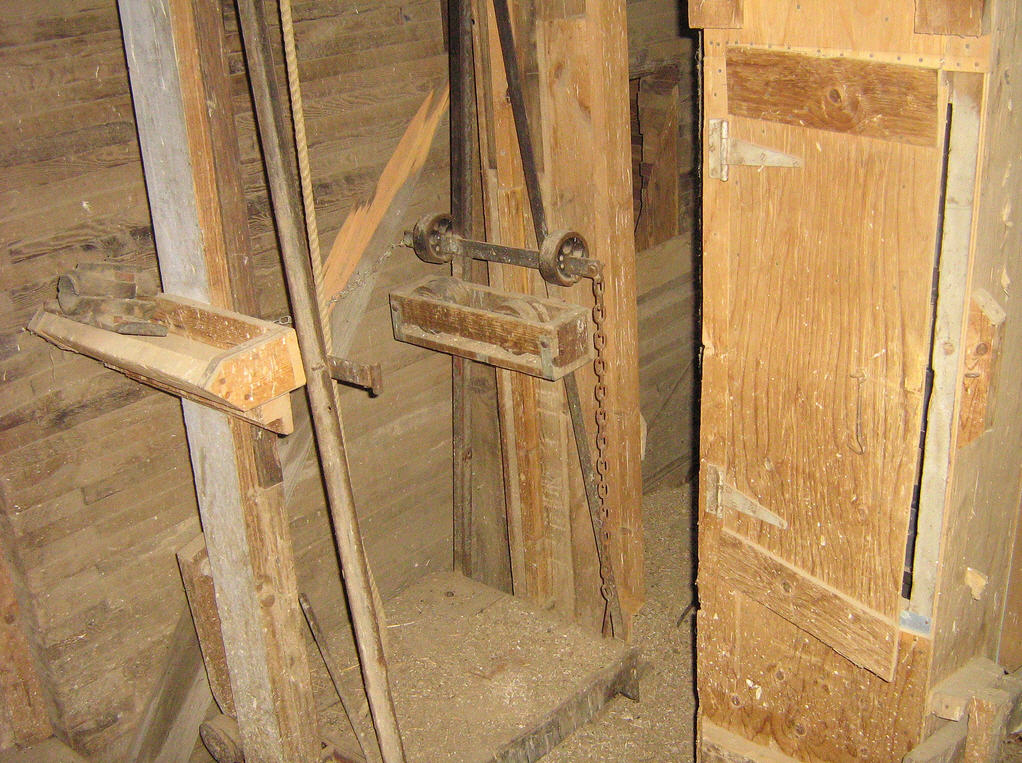

Image 91    Click to view a larger and higher resolution image
This hand elevator is in a grain elevator that was moved to the Sukanen Ship Pioneer
Village and Museum in Sukanen, Saskatchewan, Canada
I would not be surprised to find the grain bucket elevator behind that plywood door...
Image provided by: Roger Ailes
 I know more!



 Elevators With Other Driving Machines

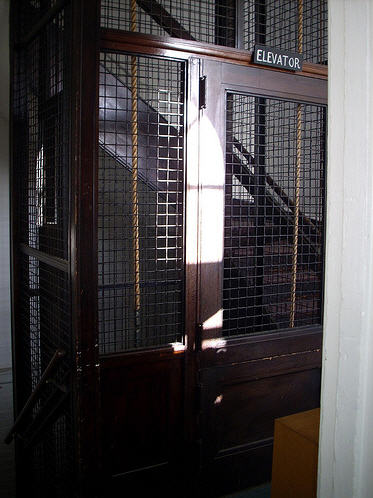

Image 92    Click to view a larger and higher resolution image
A hand elevator in a library...
Image provided by: Clive Anderson
 I know more!



 Elevators With Other Driving Machines
Image 93    Click to view a larger and higher resolution image
An AC motor driven, double v-belt "elevator" in Helena, Arkansas, U.S.A.
I believe you can see the two driven sheaves better in the larger image...
Image provided by: Amoz Eckerson
 I know more!



 Elevators With Other Driving Machines

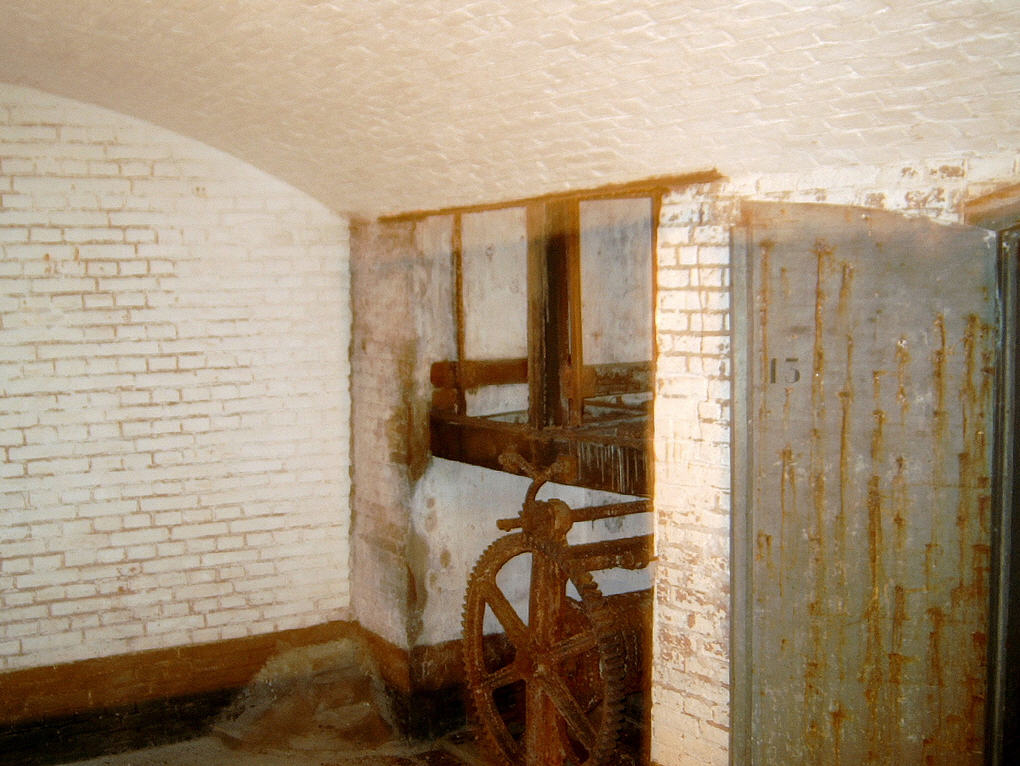

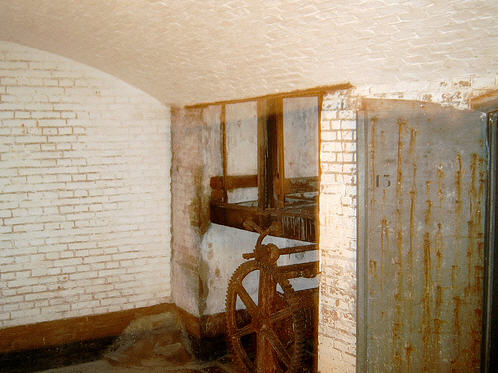

Image 94    Click to view a larger and higher resolution image
Start cranking...
Fort Asperen - one of the forts of the Dutch Water Defense Line, The Netherlands
Image provided by: Jon Meyer
 I know more!



 Elevators With Other Driving Machines

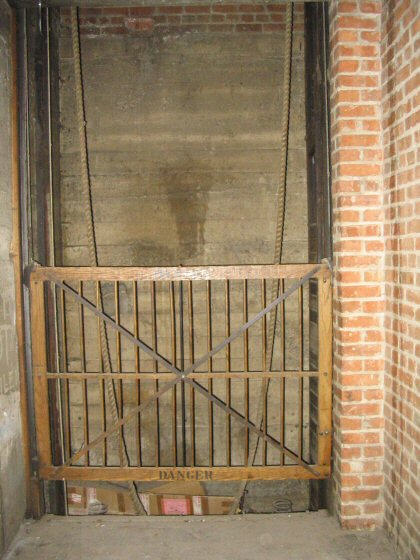

Image 95 (1 of 2)
Somewhere in Edmonton, Alberta, Canada
Image provided by: Sadie Jolie
 I know more!



 Elevators With Other Driving Machines

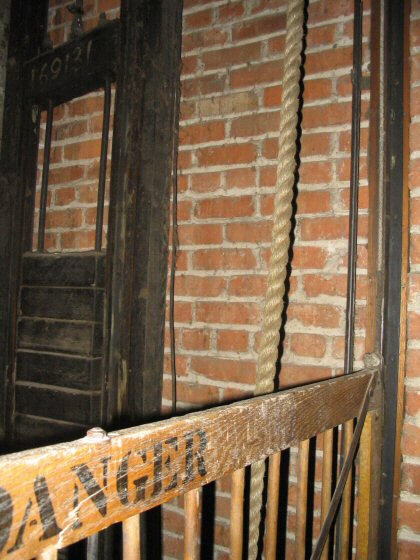

Image 96 (2 of 2)
Looks like wooden guide rails all around...
Image provided by: Sadie Jolie
 I know more!



 Elevators With Other Driving Machines

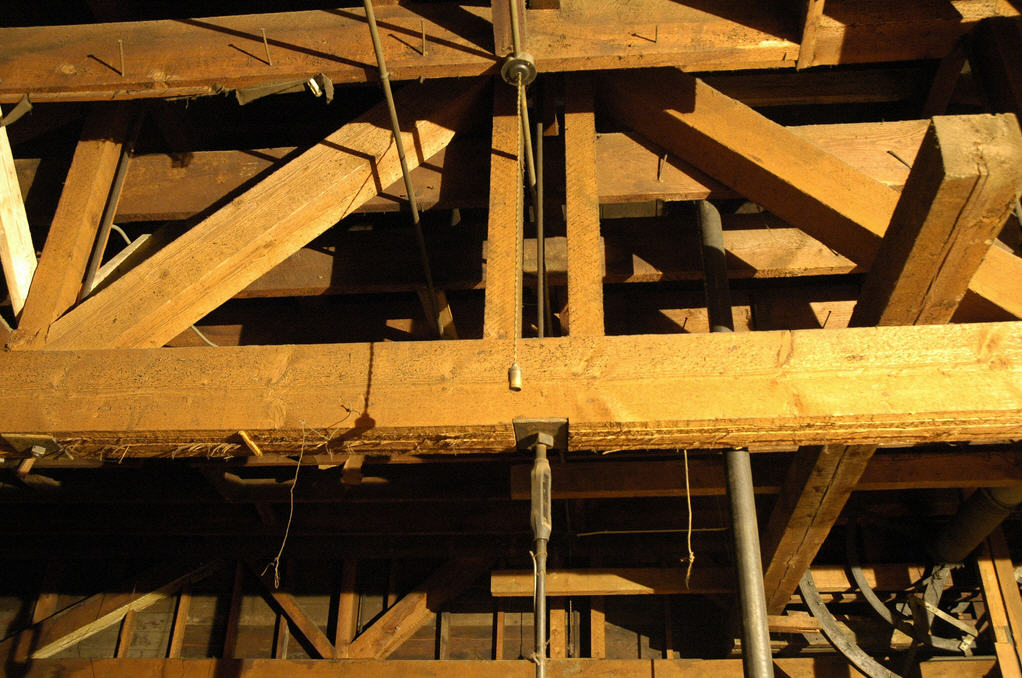

Image 97    Click to view a larger and higher resolution image (1 of 2)
Installed circa 1910 in Victoria, British Columbia, Canada
Image provided by: Sadie Jolie
 I know more!



 Elevators With Other Driving Machines
Image 98    Click to view a larger and higher resolution image (2 of 2)
A close-up of the driving machine...
I wonder if that center device is a type of brake and/or centrifugal safety?
Image provided by: Sadie Jolie
 I know more!



 Elevators With Other Driving Machines

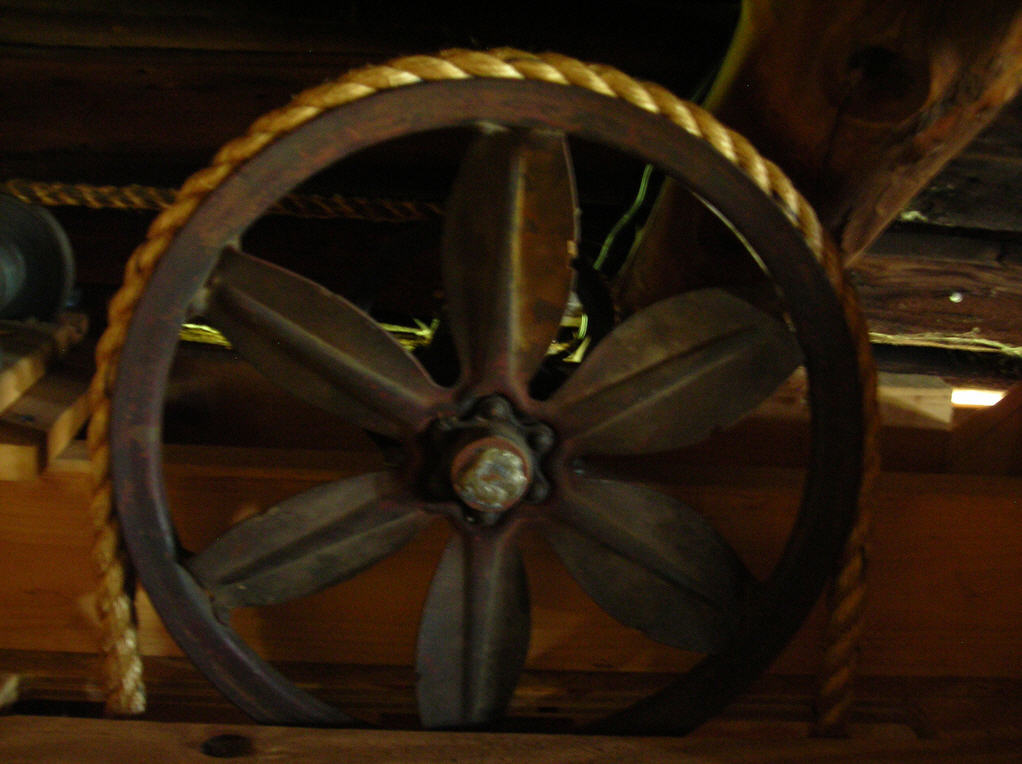

Image 99    Click to view a larger and higher resolution image
Found in a barn in Bethel, New York, U.S.A.
Image provided by: Sadie Jolie (Thank you for the 3 wonderful photos!)
 I know more!



 Elevators With Other Driving Machines

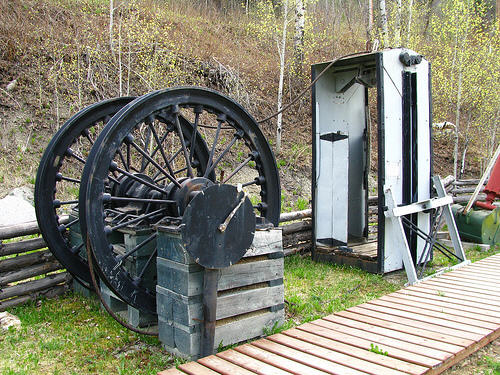

Image 100    Click to view a larger and higher resolution image
Bridge River Gold Mine in British Columbia, Canada
Please note the simplicity of the broken-rope instantaneous safety device...
Image provided by: Rusty Hinds
 I know more!



 Elevators With Other Driving Machines

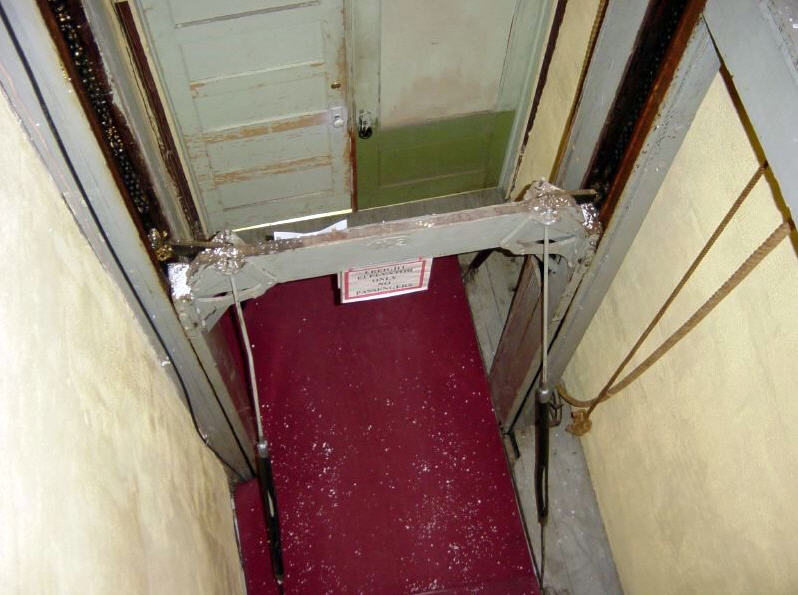

Image 101    Click to view a larger and higher resolution image (1 of 3)
Callison-Lough Funeral Home in Bentonville, Arkansas, U.S.A.
I can't find the suspension rope...perhaps it is roped 2:1 underslung
and the suspension rope is hidden in the guide rails? I don't know.
Image provided by: Herbie T. Mann
 I know more!



 Elevators With Other Driving Machines

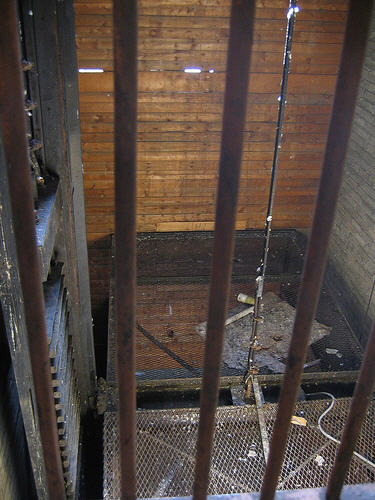

Image 102    Click to view a larger and higher resolution image (2 of 3)
I wonder if that is the brake pad and operating rope?
It looks like this elevator hit the ceiling...once or twice!
I would guess a 2X4 nailed somewhere would solve that problem...
Image provided by: Herbie T. Mann
 I know more!



 Elevators With Other Driving Machines

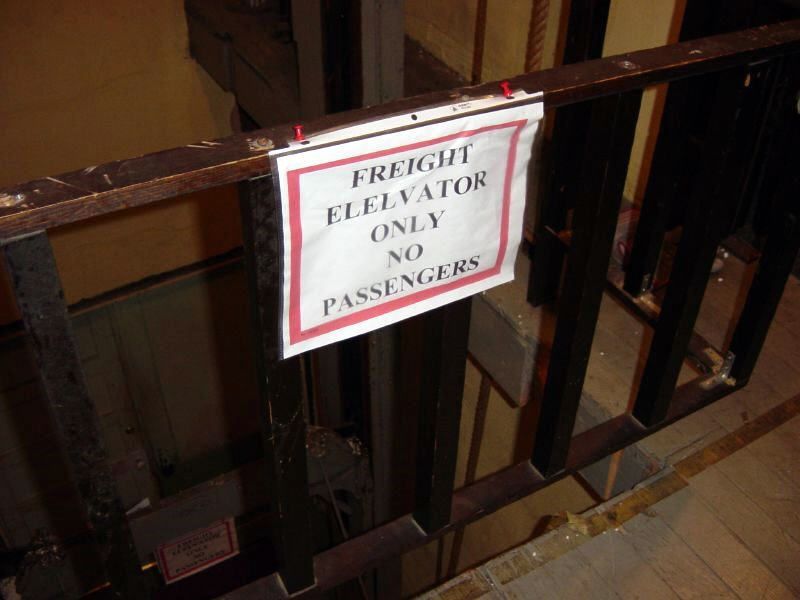

Image 103    Click to view a larger and higher resolution image (3 of 3)
Not much of a landing gate...
Image provided by: Herbie T. Mann (Thanks Herb!)
 I know more!



 Elevators With Other Driving Machines

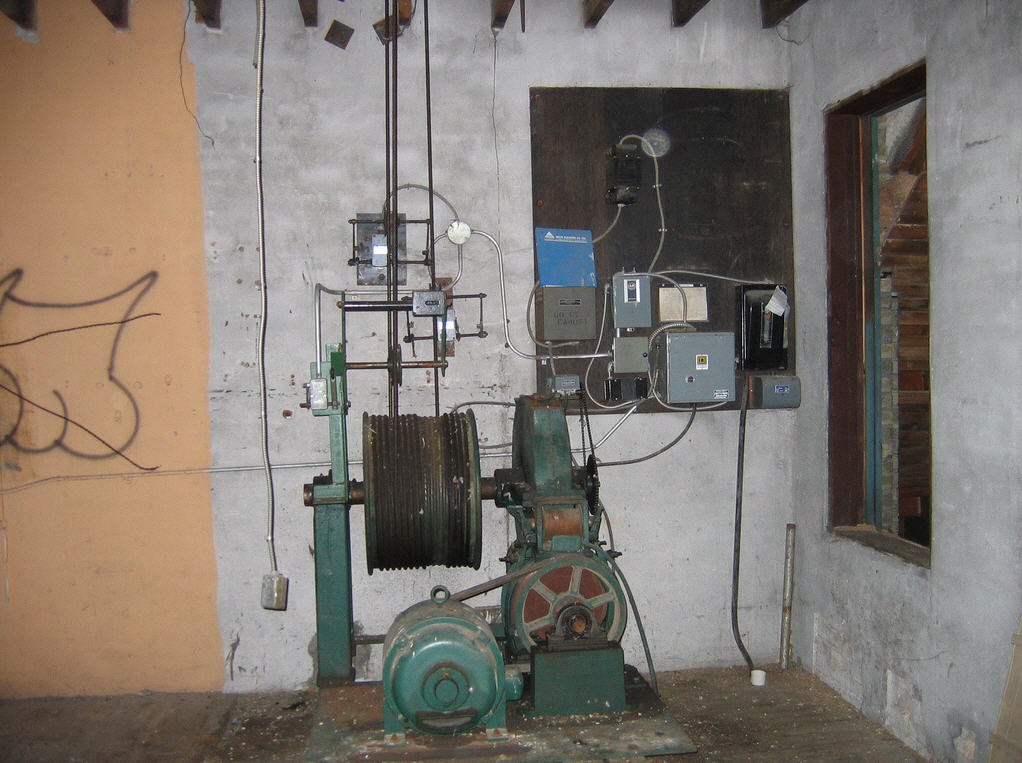

Image 104    Click to view a larger and higher resolution image (1 of 3)
A derelict plant...formerly Dominion Electrohome Industries in Ontario, Canada
This winding-drum, multiple v-belt driven, geared machine is unusual...to say the least!
Two car suspension ropes and a single rope for the counterweight.
Please note the slack rope switches and machine final limit switch.
Image provided by: Shay Yeats
 I know more!



 Elevators With Other Driving Machines
Image 105    Click to view a larger and higher resolution image (2 of 3)
Lot's of wood here...
Image provided by: Shay Yeats
 I know more!



 Elevators With Other Driving Machines

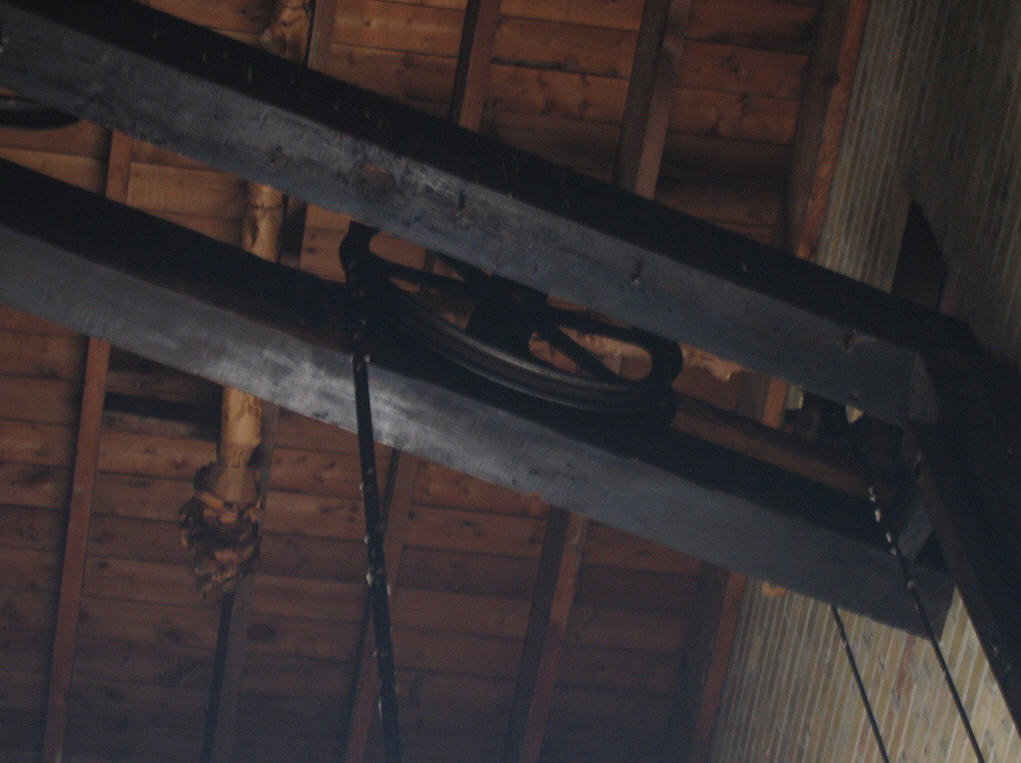

Image 106    Click to view a larger and higher resolution image (3 of 3)
Please note the unusual counterweight arrangement as well...
I wonder if those are the prints on the car top?
Image provided by: Shay Yeats (Thank you Shay!)
 I know more!

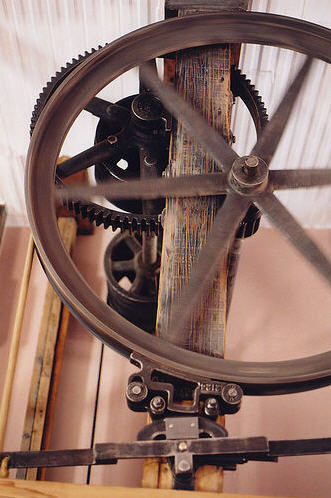

 Elevators With Other Driving Machines
Image 107
Somewhere in the Midwest, U.S.A.
I believe that is the brake and operating
mechanism below the hand driven sheave.
This machine appears to have two winding-drums. I think one
rope is behind the rail and goes down to the counterweight.
Image provided by: Ed Little
 I know more!



 ~    ~    ~
